Programmable Precision Dip Coater (1-200 mm/min) for Substrate up to 10"x12" - PTL-200

Programmable Precision Dip Coater (1-200 mm/min) for Substrate up to 10"x12" - PTL-200

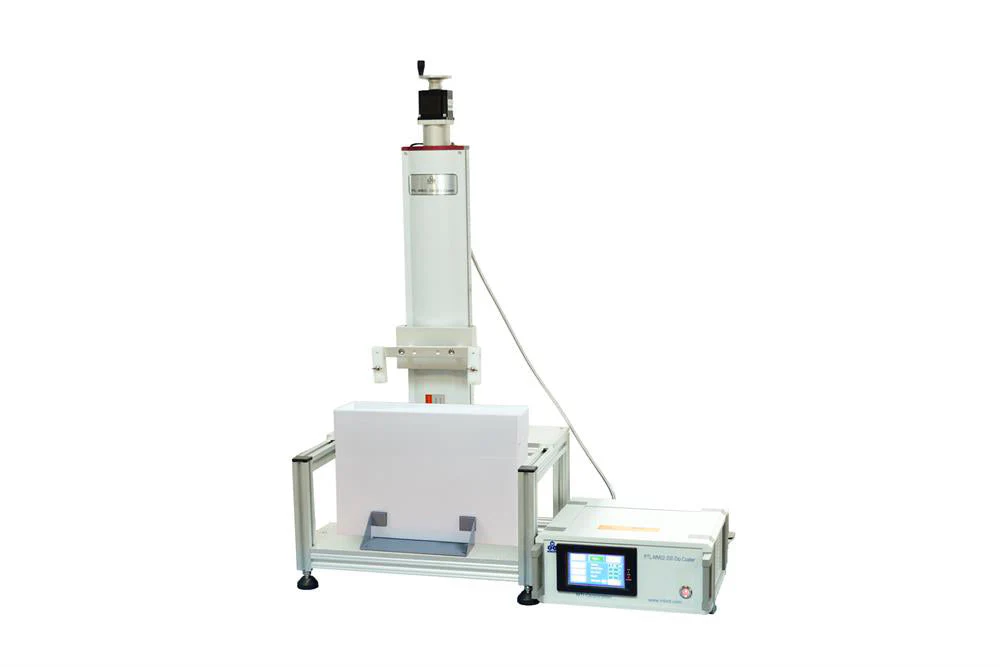

PTL-200 is a Precision Dip Coater for coating samples with a size up to 10"x12" from the liquid solution. The ball screw pulling system and 6"x4" Color PLC controller offer smooth, vibration-free travel in both directions. Pulling rate, immersion rate, dwell time, and cycling time is fully programmable. A polypropylene tank is included to hold the liquid solution. You may order a larger tank as optional to coat larger samples up to 12"x24".

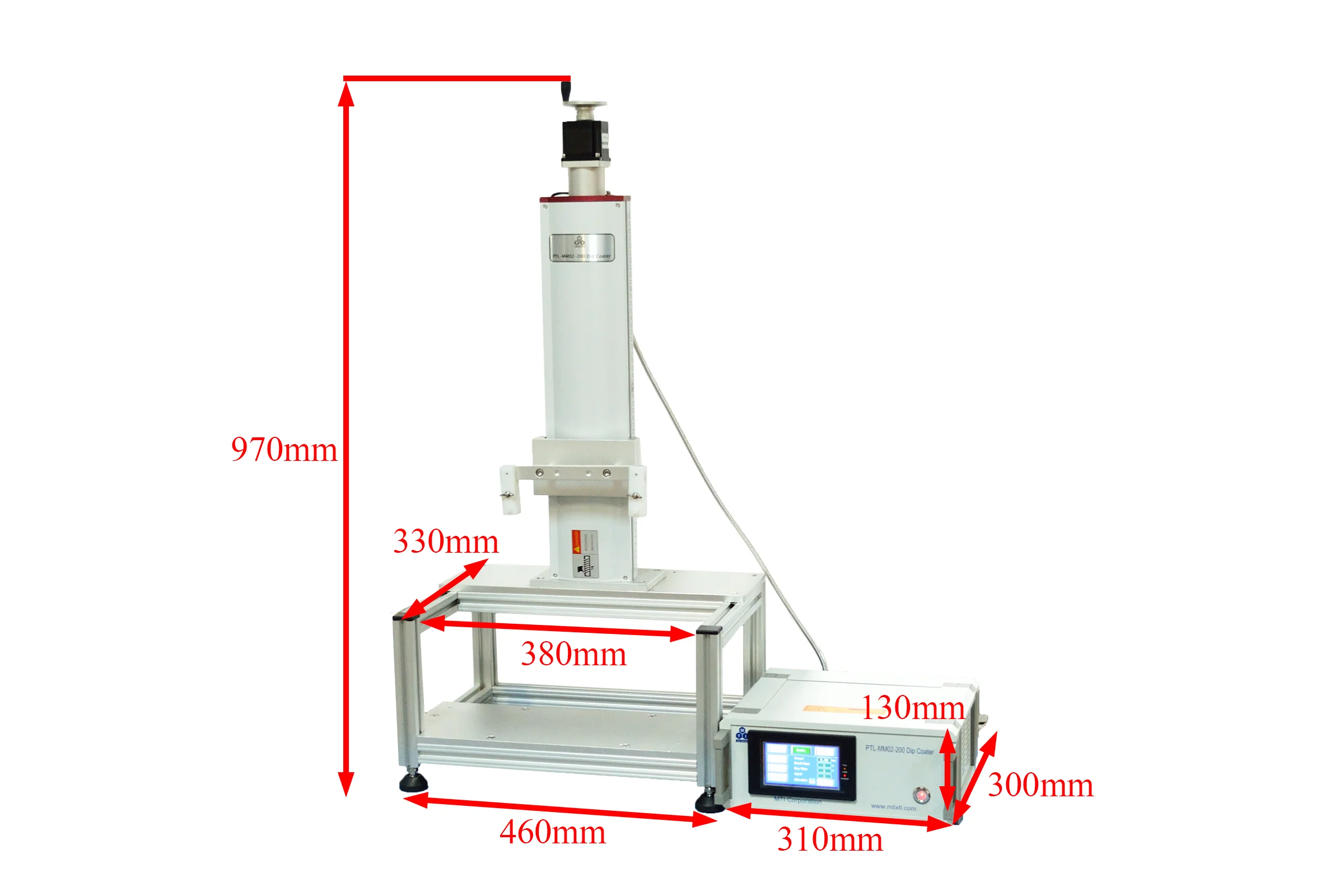

SPECIFICATIONS:

Working Voltage
  • 24VDC, 3.75 A
  • A universal power adapter is included.

Maximum Sample Load
  • 7 kg (15.4 lbs)

Sample Installation

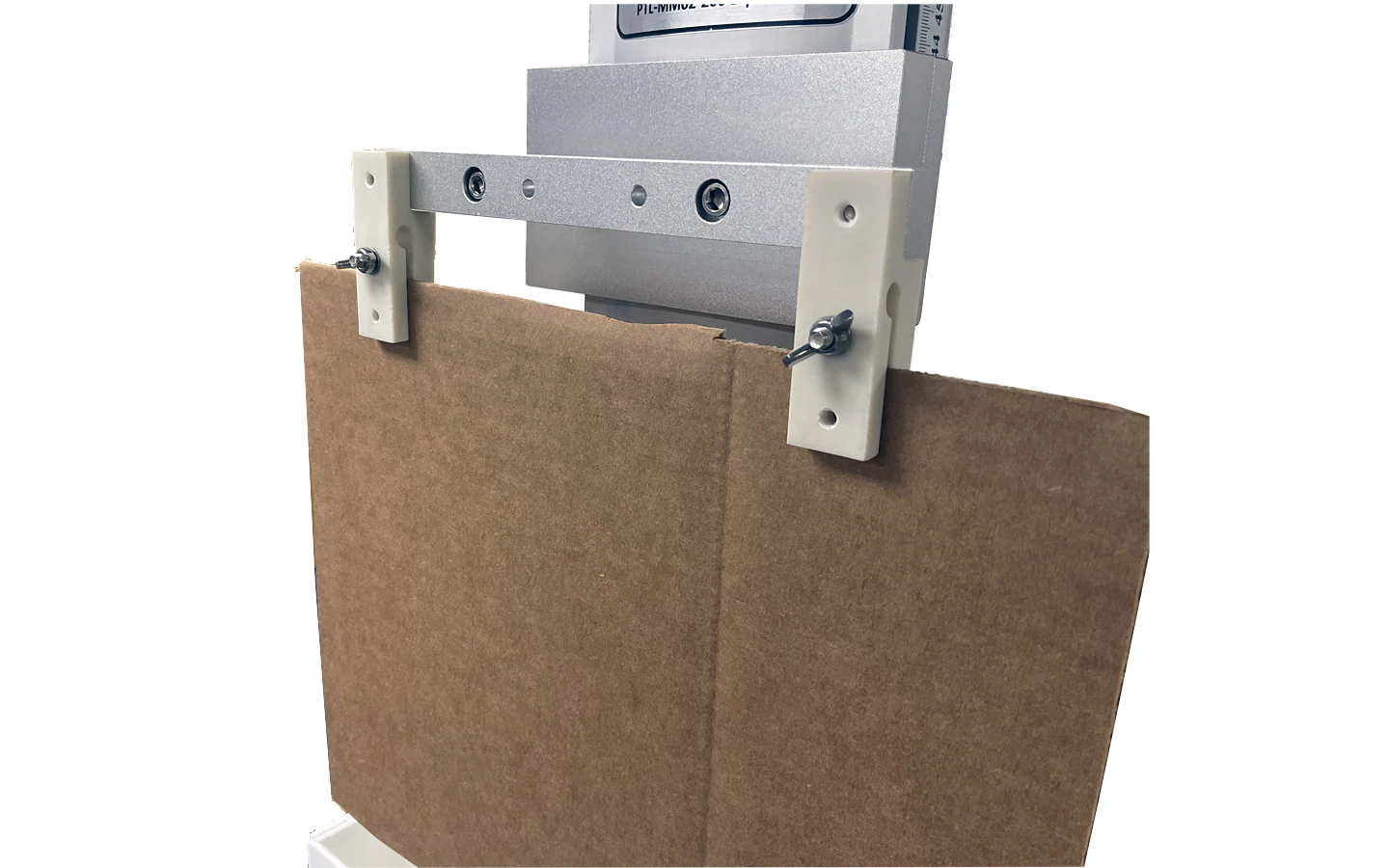

  • The sample is secured by two adjustable clamping brackets.
  • Clamping positions at 45 mm or 90 mm
Sample Size
  • Maximum 310mm(L) x 260mm(H) x 4.4 mm(Thick) ( 12" x 10")
  • Minimum width 45 mm

Touch Screen PLC Dimensions
  • 6"(L) x 4"(W)

Insertion Speed
  • 1 - 200 mm/minute programmable by Touch Screen PLC

Withdrawal Speed
  • 1 - 200 mm/minute programmable by Touch Screen PLC

Max. Dry and Dwell time
  • 999s

Max. Stroke Length
  • 270mm
  • Measurements are located on both sides of the Panel holder's traveling path for a quick distance measuring.

Max. Number of Cycles
  • 20

Speed Stability
  • +/- 0.05%
Dipping Trough
  • Material: Polypropylene
  • Outside dimension: 360mm(L) x 60mm(W) x 290mm(H)
  • Inside dimension: 340mm(L) x 50mm(W) x 280mm(H)
  • Volume: 4L
  • Optional: PTFE-Coated Dipping Trough with Standard Dimensions (for 15-Capillary Tube Sample Fixture).
  • Optional: PTFE-Coated Dipping Trough Specialized Dimensions for 5-Capillary tube sample fixture.

Optional:

Sample Fixture for  Capillary Tube
  • A Specialized Sample Holder for 5-Capillary tube.
  • A Specialized Sample Holder for 15-Capillary tube.

Optional Customization
  • If a larger immersion tank (that no longer fits in the working platform) is needed for the operation, a customized extended panel holder can be installed to the dip coater to compensate for the distance needed to reach the immersion tank.
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes
  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)
  • Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information)
  • You may click the picture below -right to order a large dip coater in a dry oven
  • You may put the coater into the fume-hood ( pic below right 2)
  • The Slurry level control & Slurry Tank Temperate Control are available upon request ( Pic right
  •



$2,449.30

Original: $6,998.00

-65%
Programmable Precision Dip Coater (1-200 mm/min) for Substrate up to 10"x12" - PTL-200—

$6,998.00

$2,449.30

Product Information

Shipping & Returns

Description

PTL-200 is a Precision Dip Coater for coating samples with a size up to 10"x12" from the liquid solution. The ball screw pulling system and 6"x4" Color PLC controller offer smooth, vibration-free travel in both directions. Pulling rate, immersion rate, dwell time, and cycling time is fully programmable. A polypropylene tank is included to hold the liquid solution. You may order a larger tank as optional to coat larger samples up to 12"x24".

SPECIFICATIONS:

Working Voltage
  • 24VDC, 3.75 A
  • A universal power adapter is included.

Maximum Sample Load
  • 7 kg (15.4 lbs)

Sample Installation


  • The sample is secured by two adjustable clamping brackets.
  • Clamping positions at 45 mm or 90 mm
Sample Size
  • Maximum 310mm(L) x 260mm(H) x 4.4 mm(Thick) ( 12" x 10")
  • Minimum width 45 mm

Touch Screen PLC Dimensions
  • 6"(L) x 4"(W)

Insertion Speed
  • 1 - 200 mm/minute programmable by Touch Screen PLC

Withdrawal Speed
  • 1 - 200 mm/minute programmable by Touch Screen PLC

Max. Dry and Dwell time
  • 999s

Max. Stroke Length
  • 270mm
  • Measurements are located on both sides of the Panel holder's traveling path for a quick distance measuring.

Max. Number of Cycles
  • 20

Speed Stability
  • +/- 0.05%
Dipping Trough
  • Material: Polypropylene
  • Outside dimension: 360mm(L) x 60mm(W) x 290mm(H)
  • Inside dimension: 340mm(L) x 50mm(W) x 280mm(H)
  • Volume: 4L
  • Optional: PTFE-Coated Dipping Trough with Standard Dimensions (for 15-Capillary Tube Sample Fixture).
  • Optional: PTFE-Coated Dipping Trough Specialized Dimensions for 5-Capillary tube sample fixture.

Optional:

Sample Fixture for  Capillary Tube
  • A Specialized Sample Holder for 5-Capillary tube.
  • A Specialized Sample Holder for 15-Capillary tube.

Optional Customization
  • If a larger immersion tank (that no longer fits in the working platform) is needed for the operation, a customized extended panel holder can be installed to the dip coater to compensate for the distance needed to reach the immersion tank.
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes
  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)
  • Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information)
  • You may click the picture below -right to order a large dip coater in a dry oven
  • You may put the coater into the fume-hood ( pic below right 2)
  • The Slurry level control & Slurry Tank Temperate Control are available upon request ( Pic right
  •
