1600 oC Max. Bridgman Crystal Growth Furnace in Air for 5- 8" Dia. Crystal - GSL-BG-LXX

1600 oC Max. Bridgman Crystal Growth Furnace in Air for 5- 8" Dia. Crystal - GSL-BG-LXX

GSL-BG-LXX is a customized three-zone heating Bridgman furnace for growing 5"-8" crystal in air

  • Three-zone heated
  • Temperature: 1600°C continuous,
  • Temperature control stability ±0.1°C
  • Heating charmer is customizable for a crystal ingot from 5" to 8."
  • Please contact the MTI team for your specification
Power
  • 220VAC single phase 50/60Hz
  • 912 KW
Heating Chamber
  • MoSi2 heating elements
  • Three-zone heating
  • Heating zone length:   60 - 300 mm selectable
Working Temperature
  • ≤1600°C (continuous)
Temperature Control

  • 4 Type B, dual thermocouples
  • 3 T/C  for control, one for monitoring the temperature of the crystal seed
Temperature controller
  • Eurotherm 3004 Temperature Controllers
  • Temperature control stability ±0.1°C
  • 24 Temperature segments
Crucible
  •  Customiziable

Pulling Mechanism
  • As the furnace heater moves upward, the crucible is moving toward the bottom exit of the furnace.
  • The maximum travel distance of the furnace heater is 200 mm.
  • Travel speed: 0.03-3 mm/hr

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request for an additional fee.



$17,494.75

Original: $49,985.00

-65%
1600 oC Max. Bridgman Crystal Growth Furnace in Air for 5- 8" Dia. Crystal - GSL-BG-LXX—

$49,985.00

$17,494.75

Product Information

Shipping & Returns

Description

GSL-BG-LXX is a customized three-zone heating Bridgman furnace for growing 5"-8" crystal in air

  • Three-zone heated
  • Temperature: 1600°C continuous,
  • Temperature control stability ±0.1°C
  • Heating charmer is customizable for a crystal ingot from 5" to 8."
  • Please contact the MTI team for your specification
Power
  • 220VAC single phase 50/60Hz
  • 912 KW
Heating Chamber
  • MoSi2 heating elements
  • Three-zone heating
  • Heating zone length:   60 - 300 mm selectable
Working Temperature
  • ≤1600°C (continuous)
Temperature Control

  • 4 Type B, dual thermocouples
  • 3 T/C  for control, one for monitoring the temperature of the crystal seed
Temperature controller
  • Eurotherm 3004 Temperature Controllers
  • Temperature control stability ±0.1°C
  • 24 Temperature segments
Crucible
  •  Customiziable

Pulling Mechanism
  • As the furnace heater moves upward, the crucible is moving toward the bottom exit of the furnace.
  • The maximum travel distance of the furnace heater is 200 mm.
  • Travel speed: 0.03-3 mm/hr

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request for an additional fee.



You may also like

NEW
Thumbnail 1Thumbnail 2

Economic Compact Bridgman Crystal Growth Furnace w/ Hanging Wire Up to 1100C - OTF1200XSBMGHVT

$23,986.00

NEW
Thumbnail 1Thumbnail 2

1650°C Bridgman Furnace for Directional Solidification and Crystal Growth - SKJ-BG1650-LD

$119,985.00

-65%NEW
Thumbnail 1Thumbnail 2

Atmosphere Controlled Directional Solidification System with Optional Feeding Device - IMCS-1500RC

$49,998.00

$17,499.30

-65%NEW
Thumbnail 1Thumbnail 2

Rotatable Vacuum Ampule Sealing Device for 20mm O.D Tube - VTS-1

$4,598.00

$1,609.30

-65%NEW
Thumbnail 1Thumbnail 2

1100 °C Max. Hybrid Compact Crystal Grower For Both CZ & Bridgman w/ Atmosphere Control - OTF-1200X-SCB

$49,989.00

$17,496.15

-65%NEW
Thumbnail 1Thumbnail 2

Hybrid Crystal Grower For Both CZ & Bridgman up to 1700°C w/ Atmosphere Control - OTF-1700X-PVT

$59,985.00

$20,994.75

-65%NEW
Thumbnail 1Thumbnail 2

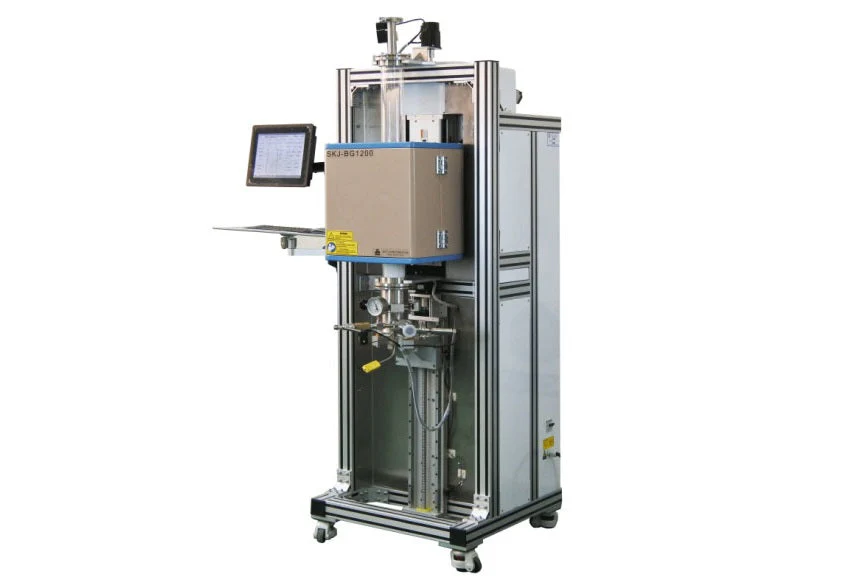

1200°C Max. Small Bridgman Crystal Growth Furnace with 2 heating Zone and 80 mm Quartz Tube - SKJ1200BG

$56,996.00

$19,948.60

NEW
Thumbnail 1Thumbnail 2

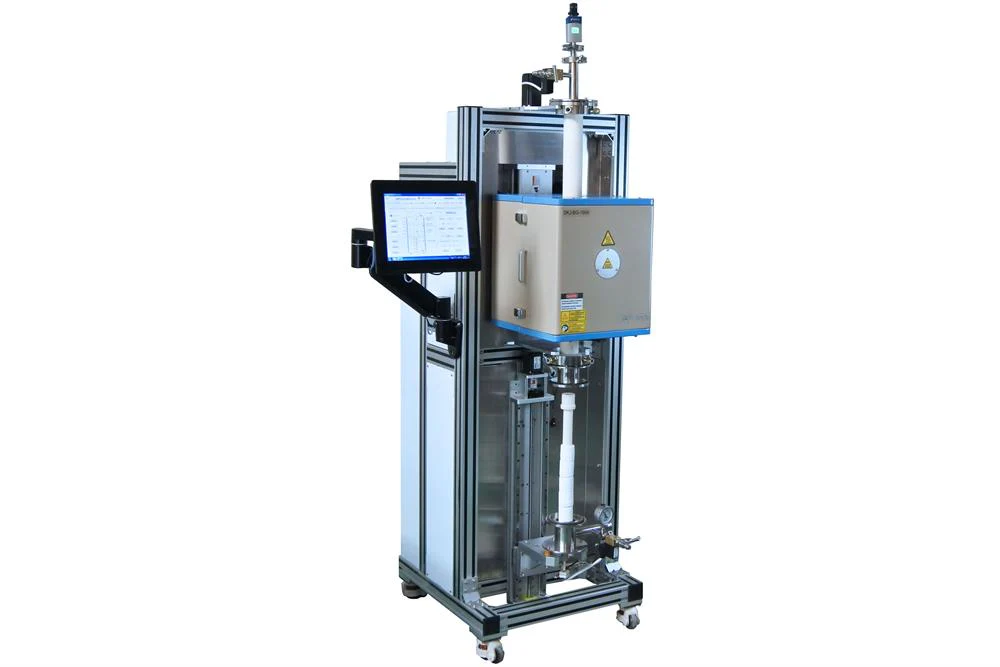

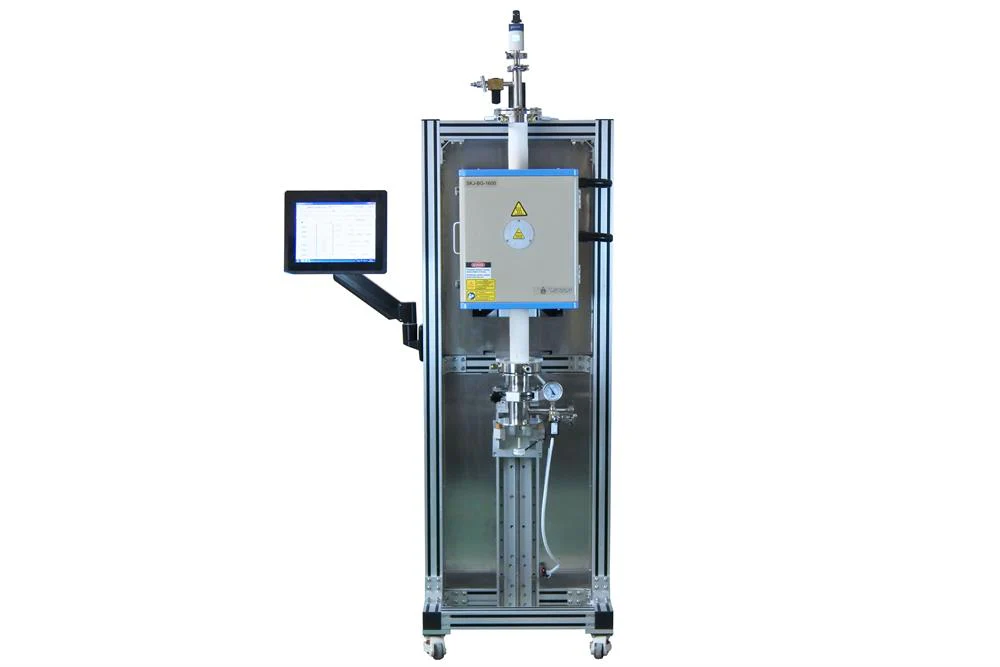

1700°C Max. Small Bridgman Crystal Growth Furnace with Air-tight 60mm Alumina Tube - SKJ-BG-1600
