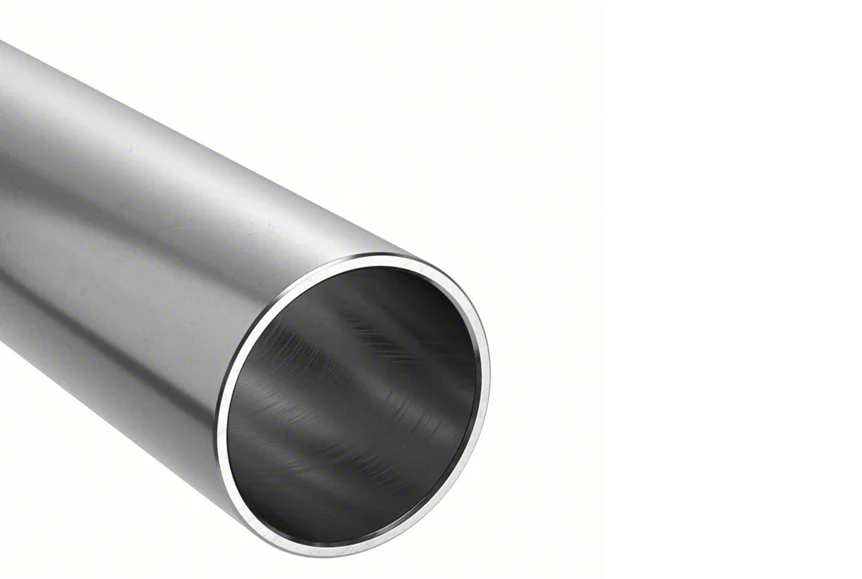

Product image 1
Product image 2
HomeStore

SS316 Alloy Tube: 2"OD x 1,87"ID x 24" or 36" L , 600C Working Temperature - Tube-SS316-50-XX

SS316 Alloy Tube: 2"OD x 1,87"ID x 24" or 36" L , 600C Working Temperature - Tube-SS316-50-XX

Tube Specification:
  • Outside Diameter:          2"    (  50.8 m )
  • Inside Diameter:             1.87“  （ 47.5 mm)
  • Tube Length:                  24"  (609 mm)   or 36" ( 914 mm) selected from the product options
  • Max. working temperature without load:
    Max Working Pressure:   10 atm  @800°C  with suitable pressure flange
    • 600°C under 1 atm pressure
  • Max. vacuum pressure "   1E0-4 torr torr  under cold state
Notice:    You may need a water cold flange for the steel tube due to the high thermal conductivity

Select Length
From $295.00
SS316 Alloy Tube: 2"OD x 1,87"ID x 24" or 36" L , 600C Working Temperature - Tube-SS316-50-XX—
$295.00

Product Information

Shipping & Returns

Description

Tube Specification:
  • Outside Diameter:          2"    (  50.8 m )
  • Inside Diameter:             1.87“  （ 47.5 mm)
  • Tube Length:                  24"  (609 mm)   or 36" ( 914 mm) selected from the product options
  • Max. working temperature without load:
    Max Working Pressure:   10 atm  @800°C  with suitable pressure flange
    • 600°C under 1 atm pressure
  • Max. vacuum pressure "   1E0-4 torr torr  under cold state
Notice:    You may need a water cold flange for the steel tube due to the high thermal conductivity
