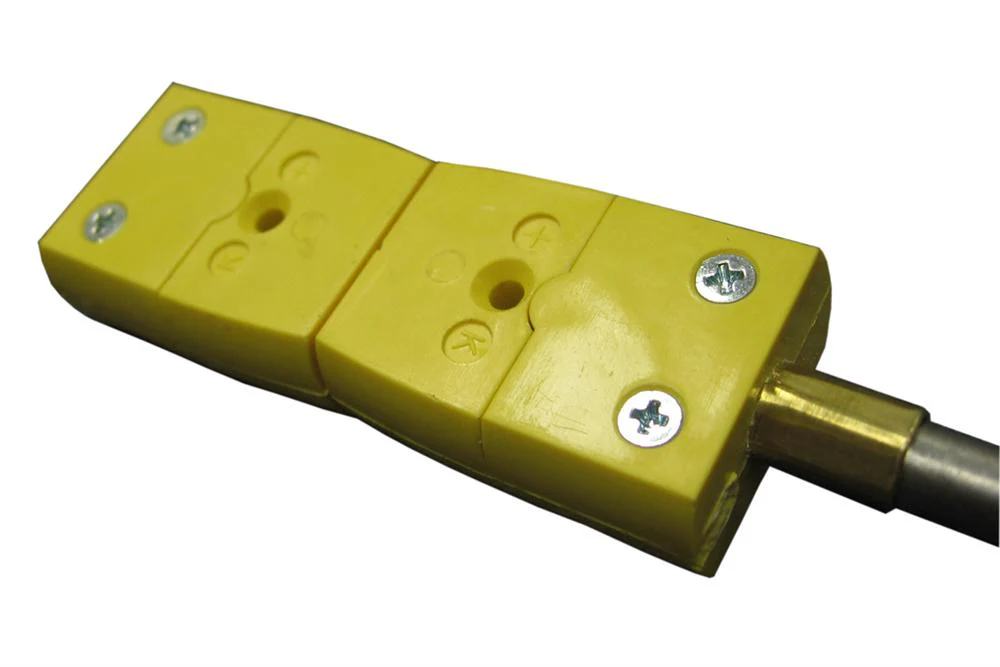

Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B
Features:
- Super Accurate, Super Stable, Super Value
- For Use with Temperatures Up to 1335 oC (2440 o F)
- Excellent Long-Term Stability at High Temperature
- Nickel-Chrome-Based Superalloy Sheathing Provides Excellent High-Temperature Performance
-
Excellent Oxidation, Carburization, and Chlorination Resistance
-
Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with a standard plug; related product below).
|
Specifications:
|
Application Note:
- Replacement thermocouple for KSL1100XS, KSL1200XJ, and OTF1200XIIS.
- If necessary, please check out K K-type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
- There are 2 polarities for a K-type thermocouple: positive and negative. Please check the polarity of the K K-type thermocouple before use. The wrong polarity may cause a temperature measuring error.
- It is also easy to test the polarity of K-type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
$48.62
Original: $138.90
-65%Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B—
$138.90
$48.62Product Information
