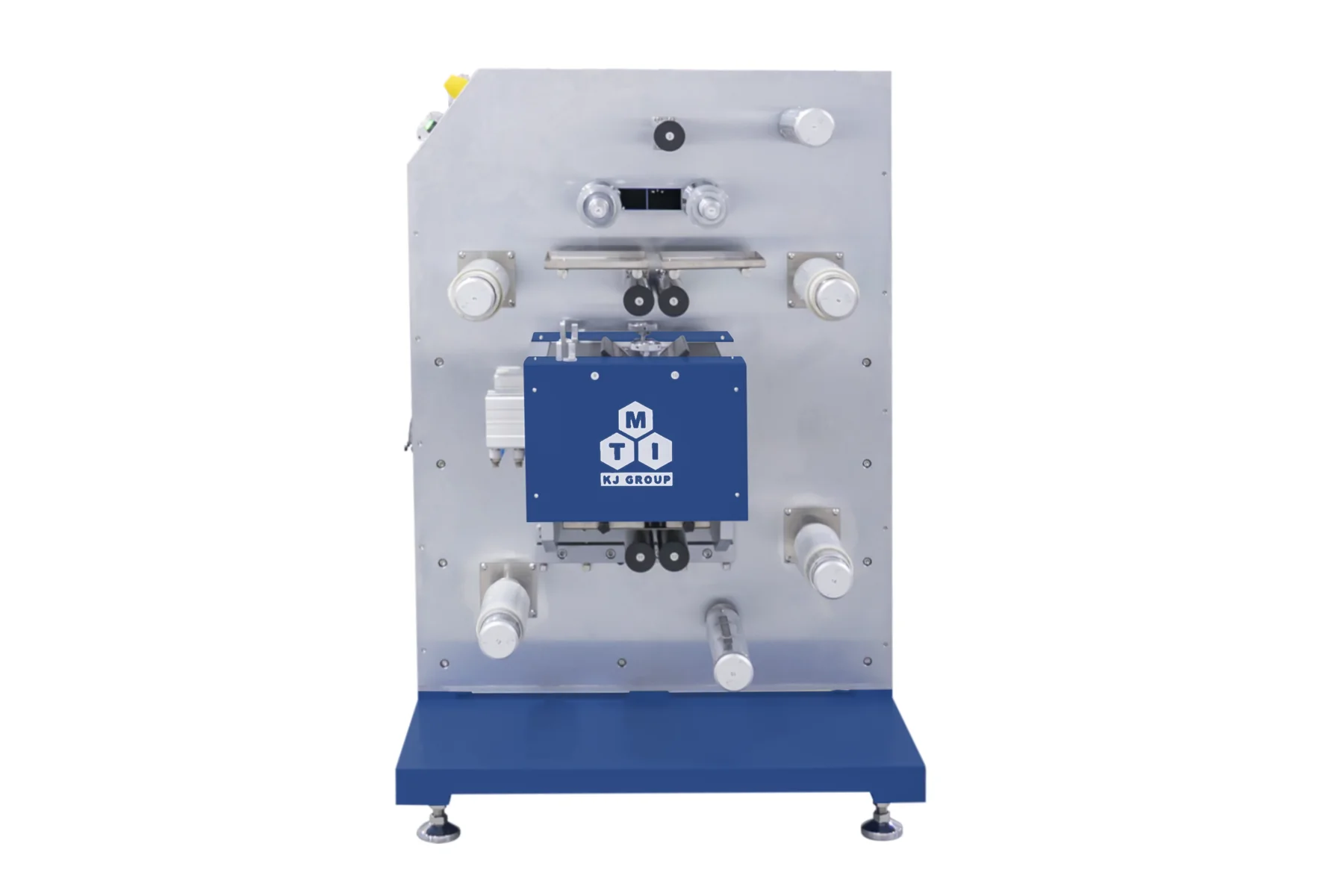

Product image 3

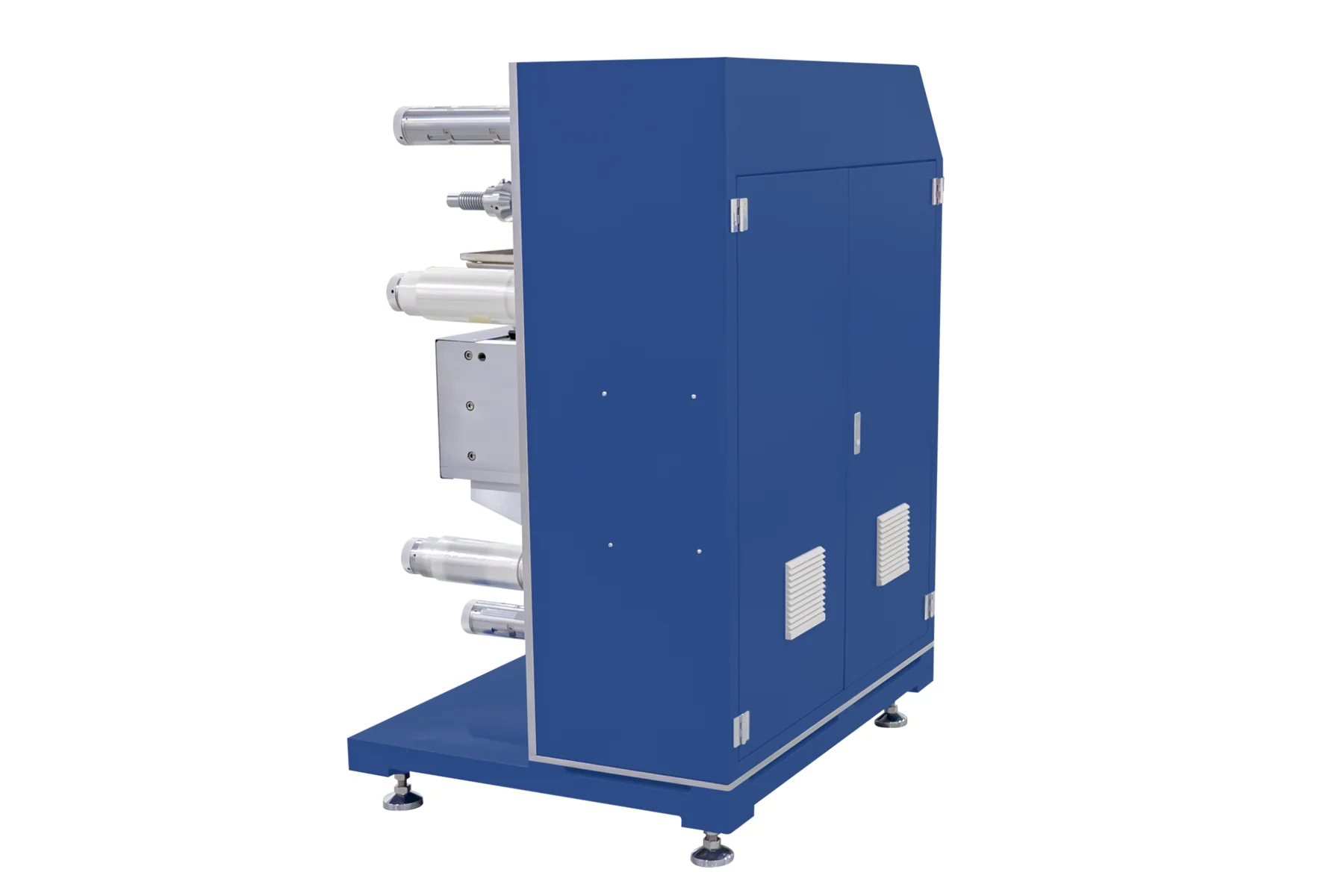

Product image 4
Product image 5
HomeStore

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200

MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press.

SPECIFICATIONS:
Power
  • AC208-240VAC, 50/60Hz, single phase
  • 3.85 kW
Compressed Air
  • 0.5 - 0.8 MPa compressed air for pneumatic operation.
Rollers
  • One stainless-steel roller, Ф120mm
  • One rubber roller, Ф120mm
  • Roller width is 200 mm
Laminating Width
  • Substrate width <180 mm
Laminating Speed
  • < 5 m/min
Lamination Pressure
  • Max. 0.6 T
 Lamination Gap
  • Max. 2 mm (gauge resolution is 1 um)
Lamination Temperature
  • Max. 120℃ (adjustable)
Winding Roller Diameter
  • Max. Ф200mm
  • Carboard diameter is 3" for loading on winding/unwinding roller
  • Substrate weight < 50 kg per roll
Compliance
  • NRTL or CSA certification is available upon request at the extra cost



$89,980.00
