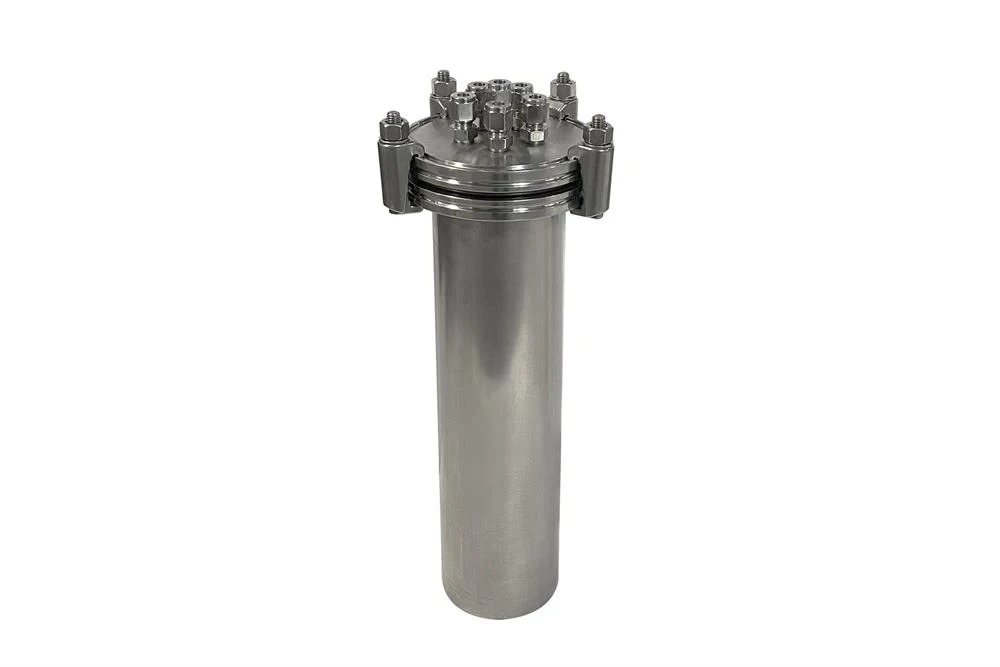

SS316 Reaction Vessel (1100 ml) with 6 x 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6

RCSS31676 is an SS316 stainless steel tube with a vacuum flange and six 1/4" dia. feedthroughs, designed for the reactor of a molten salt battery.
For the furnace used with VBF-600S vessel, please choose VBF1200S

Structure	SS316 Stainless Steel
Dimension	76mm OD x 70mm ID x 300 mm height
Volume	1100ml
Ports	1/4" compression tube ports x 6
Flange Type	DN80ISO-K
Working Temperature	RT - 600°C Max
Working Pressure	Vacuum: 10e-3 Torr by mechanical pump, or 10e-5 torr by a turbopump Positive pressure: 3 bar
Net Weight	3.5Kg
Application	Crucible for melting Li and other alloys Reactor of molten salt rechargeable battery
