Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES

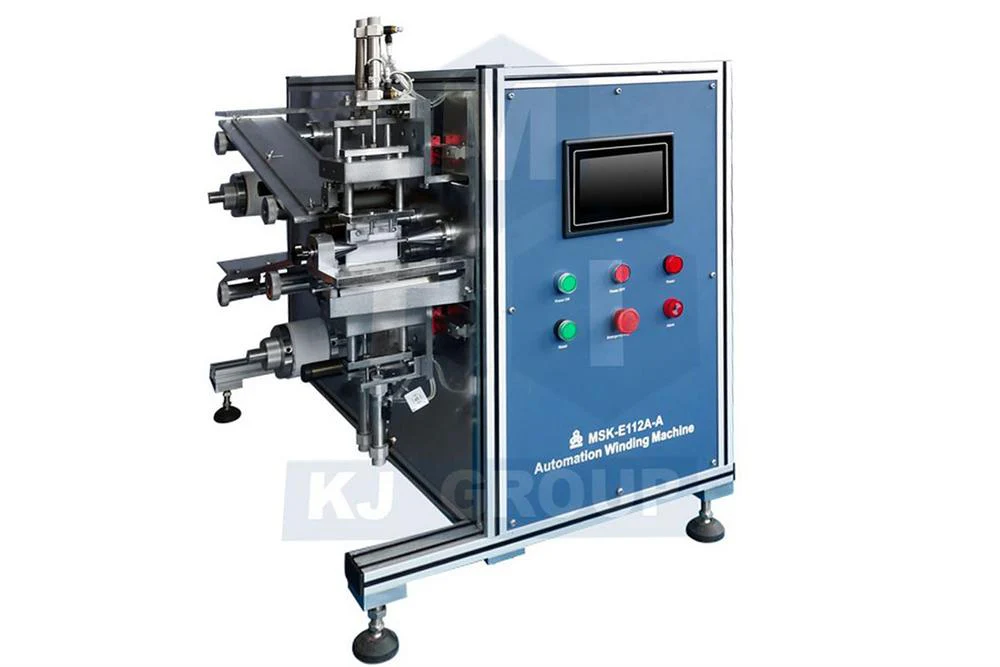

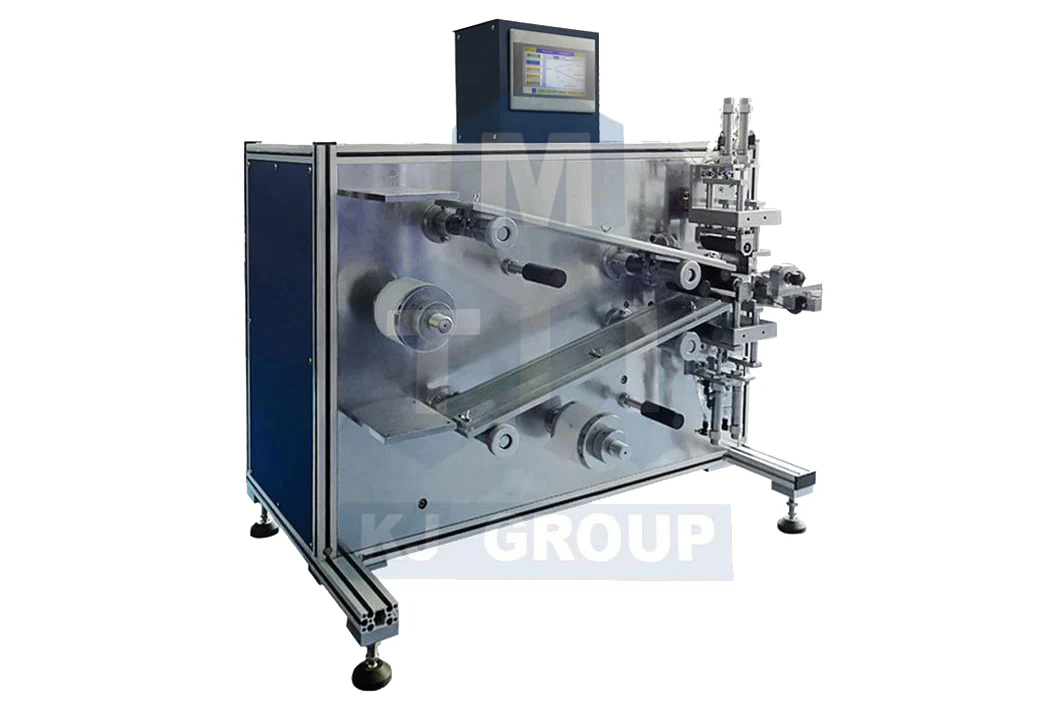

MSK-112A-ES a new semi-automatic winding machine for accurate assembly of flat pouch/prismatic cell electrode core. The separator film is sandwiched between the cathode and anode materials and then rolled up into a Prismatic pouch cell core at constant tension force. This is an ideal tool provides the reliability and precision to produce high-quality windings of electrode cores.
Outstanding Features:
- PLC Touch Screen Control
- Unreeling rotors for separator film feeding
- Vacuum assist 1200mm long feeder bed for accurate cathode/anode sheet positioning & feeding
- Passive tension control; tension is adjustable
- Automatic finish cut after the completion of jelly roll winding
- The device can be placed into a glovebox and operated in inert gas
MTI has granted the patent 201920397543.X for the Pouch Cell Winding Machine MSK-112A-ES since October 2019.
SPECIFICATIONS:
| Working Voltage | Single-phase 220VAC, 50/60Hz (to operate at 110V, we may add a 1500W transformer) |
| Max. Power Consumption | 1KW |
| Cathode / Anode Winding |
|
| Separator Winding |
|
| Winding Rod | 3.5mm O.D |
| Electrode Winding Size |
|
| Winding Accuracy | Edge Evenness: <0.5mm |
| Tension Control | <150g adjustable |
| Winding Width | Manually adjustable 25 - 70mm |
| Winding Speed | 0 - 400 RPM adjustable |
| Feeder Bed | 1200mm Long |
| Compressed Air Requirement |
0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included. please click here to order or order from your local hardware store) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.  pic1  pic2 |
| Product Dimensions | L1000mm * W700mm * H900mm |
| Weight | 150Kg |
| Warranty |
|
| Compliance |
|
| Optional |
|
| Operation Instruction & Video |
  |
Original: $32,986.00
-65%$32,986.00
$11,545.10Product Information
