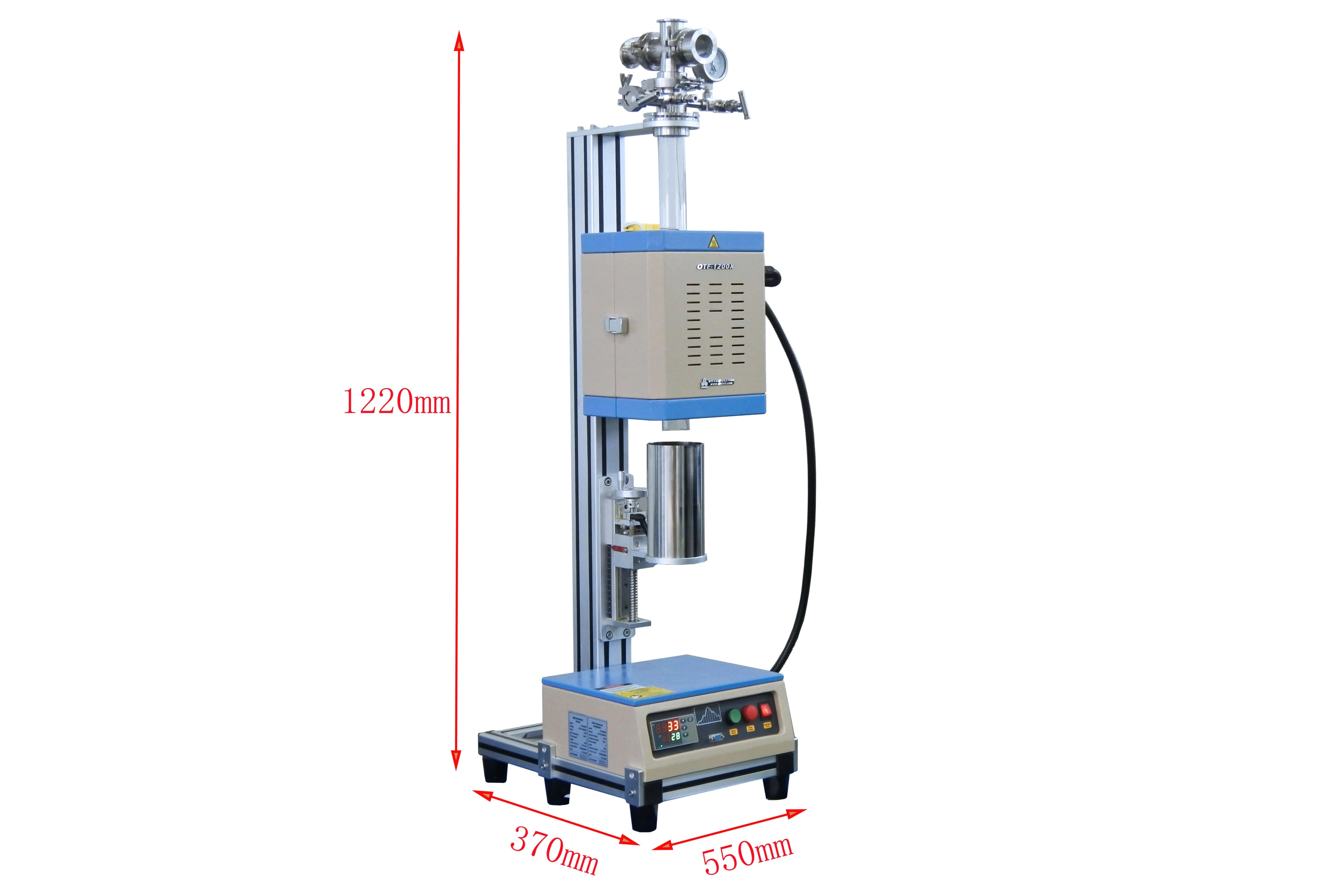

1200°C Max. Compact Inert Gas Quenching Furnace with 2" OD Quartz Tube - OTF1200XSVTQ

1200°C Max. Compact Inert Gas Quenching Furnace with 2" OD Quartz Tube - OTF1200XSVTQ

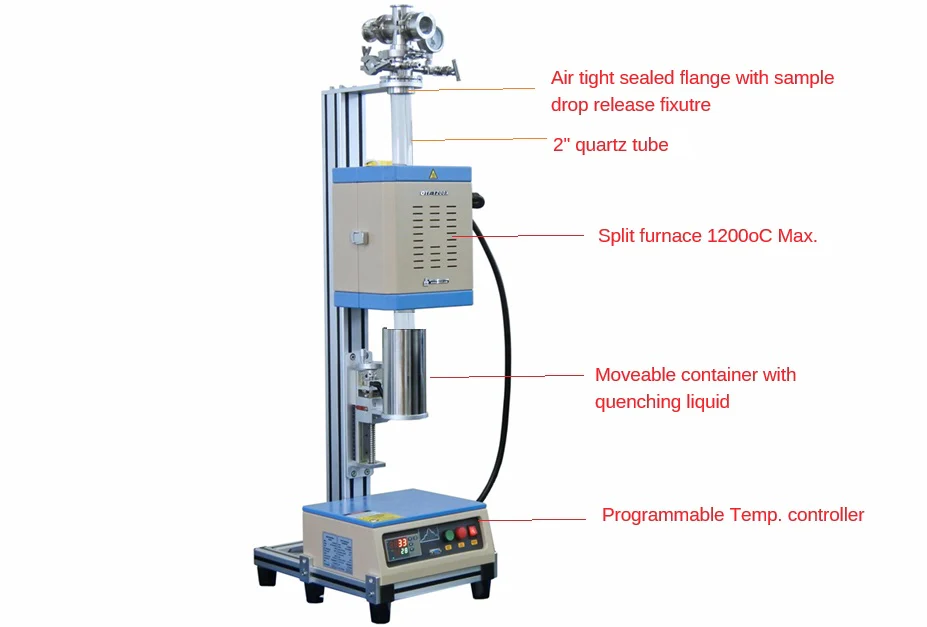

OTF-1200X-S-VTQ is a compact vertical quenching tube furnace with a 50 mm OD quartz tube, which is designed for quenching samples from temperatures ( Max. 1200°C) into a container with mineral or silicone oil to study material phase transitions and microstructures.  An air-tight flange with a sample drop fixture is installed on the top of the quartz tube, and the bottom of the quartz tube is open to the quenching media.  Sample can be dropped manually via the top hand wheel.

SPECIFICATIONS

Furnace Structure

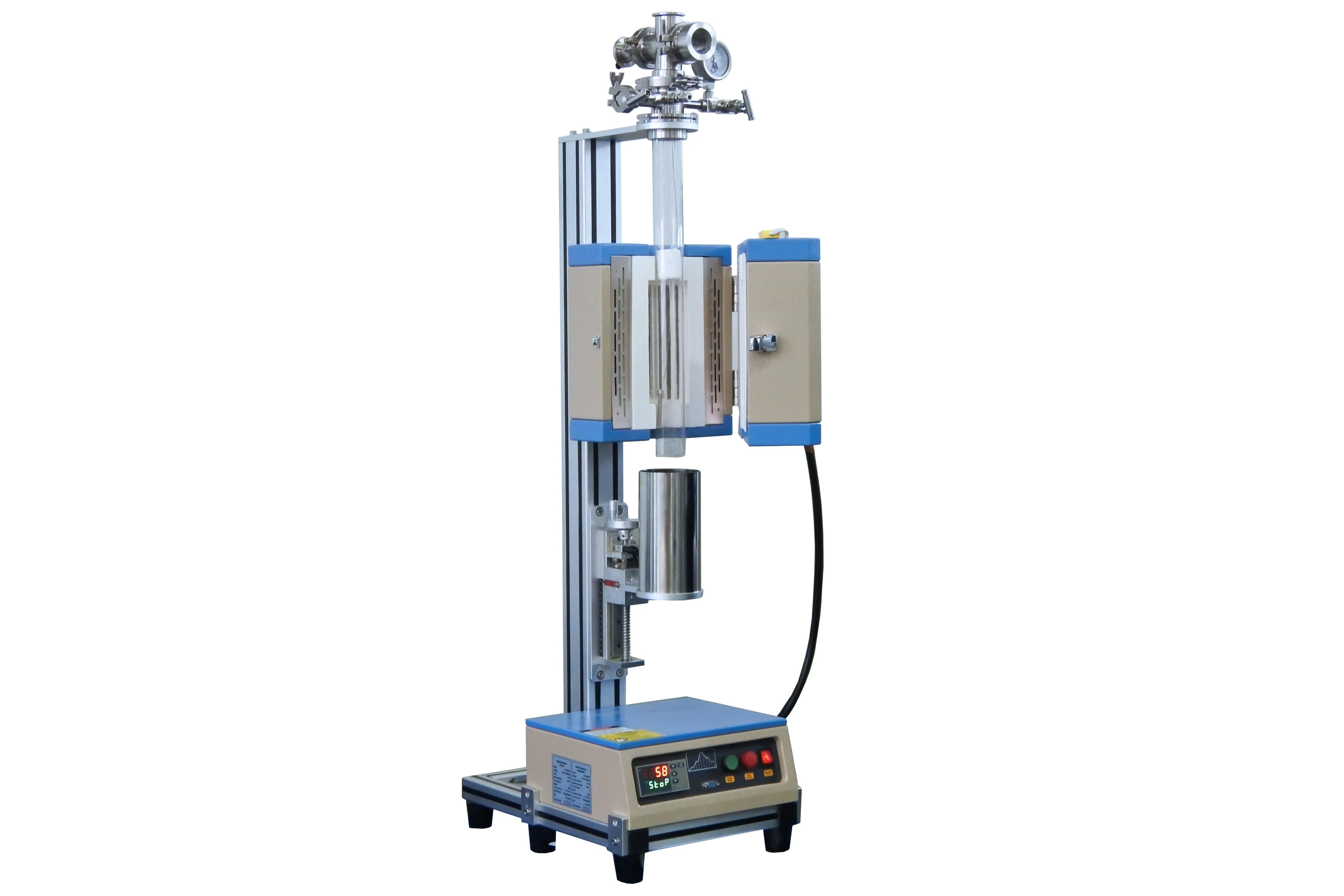

  • Split tube furnace design for tube swap.
  • The bottom of the quartz tube is immersed in an SS304 container filled with quenching media.
  • Top of the tube is sealed by an air-tight flange with a valve and a gas inlet.

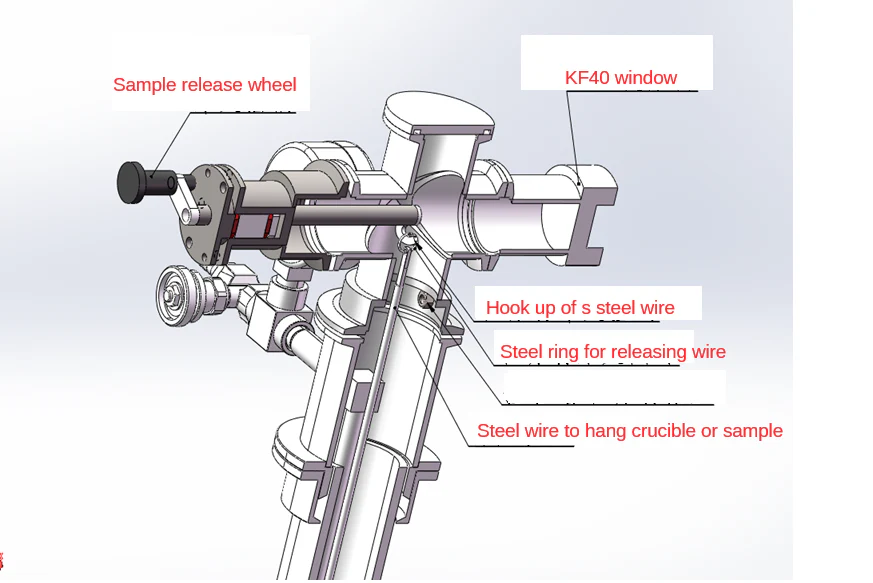

  • The sample or a crucible is hung to a releasing fixture via a metallic wire.  The sample will drop into the liquid container rapidly by rotating a handwheel.
  • The furnace can also be used for heating treatment under vacuum by adding a flange on the bottom ( remove the liquid container.)

Power
  • 110 VAC, Single Phase, 50/60 Hz
  • 1.2 kW

  • 10 feet long 10-3 AWG heavy-duty UL-approved power cable is included.

Heating Temperature
  • 1200°C < 30 minutes
  • 1100°C  continuous
Max. Heating Rate
  • ≤20°C /min

Processing Tube
  • Materials:  Quartz Tube
  • Size:   OD 50 mm x ID 45 mm x Length 680 mm

Heating Zone

  • Heating Zone length:    200 mm
Temperature Controllers
  • 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendants (s).
  • +/- 1 ºC temperature accuracy.
  • One K-type thermocouple.
  • RS-485 Communications Port.
  • PC-controlled software and interface module are optional. (Standard Modbus protocol, written by LabVIEW).
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.


Water and Oil chiller (optional)
  • For better quenching with less oxidation,  suggest using silicone oil as quenching media with recirculating cooling
  • Please click here to order a water chiller

Compliance
  • CE Certified
  • NRTL certification (UL61010)  or CSA certification is available upon request at extra cost.

Application Notes

For quenching Ti alloy, you shall use silicone oil with a recirculating chiller, quartz thermal block, and an alumina crucible to avoid oxidation. Please see the pictures below
