Magnetic De-ironing Filtration System for Battery Electrode Slurry - MSK-FT03

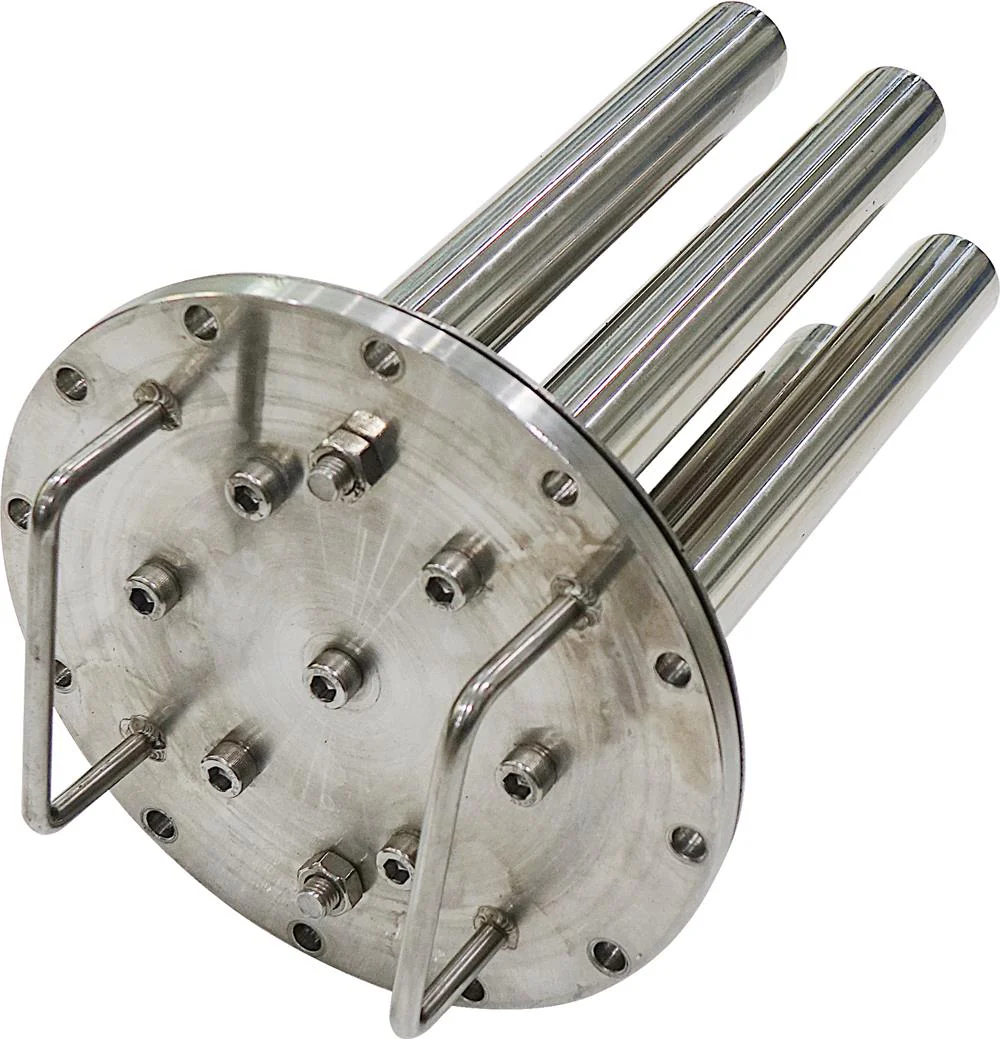

MSK-FT03 is a magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry for Li-ion battery before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
SPECIFICATIONS
| Air Source |
0.5 - 0.8MPa
|
| Deironing Function |
10000 G per magnetic rod, 7 rods in total
|
| Filtration Mode |
Vacuum filtration, magnet deiron, continuous process
|
| Filtration Mesh |
10"150mesh filtration core. The mesh number of filter can be customized.
|
| Deiron Capacity |
4 magnetic bar with φ25*200mm，each rold with 10000 Gs
|
| Filtration Container | Stainless steel, customization available |
| Single-Pass Remaining Slurry | 0.4 L |
| Slurry Viscidity | <=20000CP |
$5,249.30
Original: $14,998.00
-65%Magnetic De-ironing Filtration System for Battery Electrode Slurry - MSK-FT03—
$14,998.00
$5,249.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MSK-FT03 is a magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry for Li-ion battery before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
SPECIFICATIONS
| Air Source |
0.5 - 0.8MPa
|
| Deironing Function |
10000 G per magnetic rod, 7 rods in total
|
| Filtration Mode |
Vacuum filtration, magnet deiron, continuous process
|
| Filtration Mesh |
10"150mesh filtration core. The mesh number of filter can be customized.
|
| Deiron Capacity |
4 magnetic bar with φ25*200mm，each rold with 10000 Gs
|
| Filtration Container | Stainless steel, customization available |
| Single-Pass Remaining Slurry | 0.4 L |
| Slurry Viscidity | <=20000CP |
