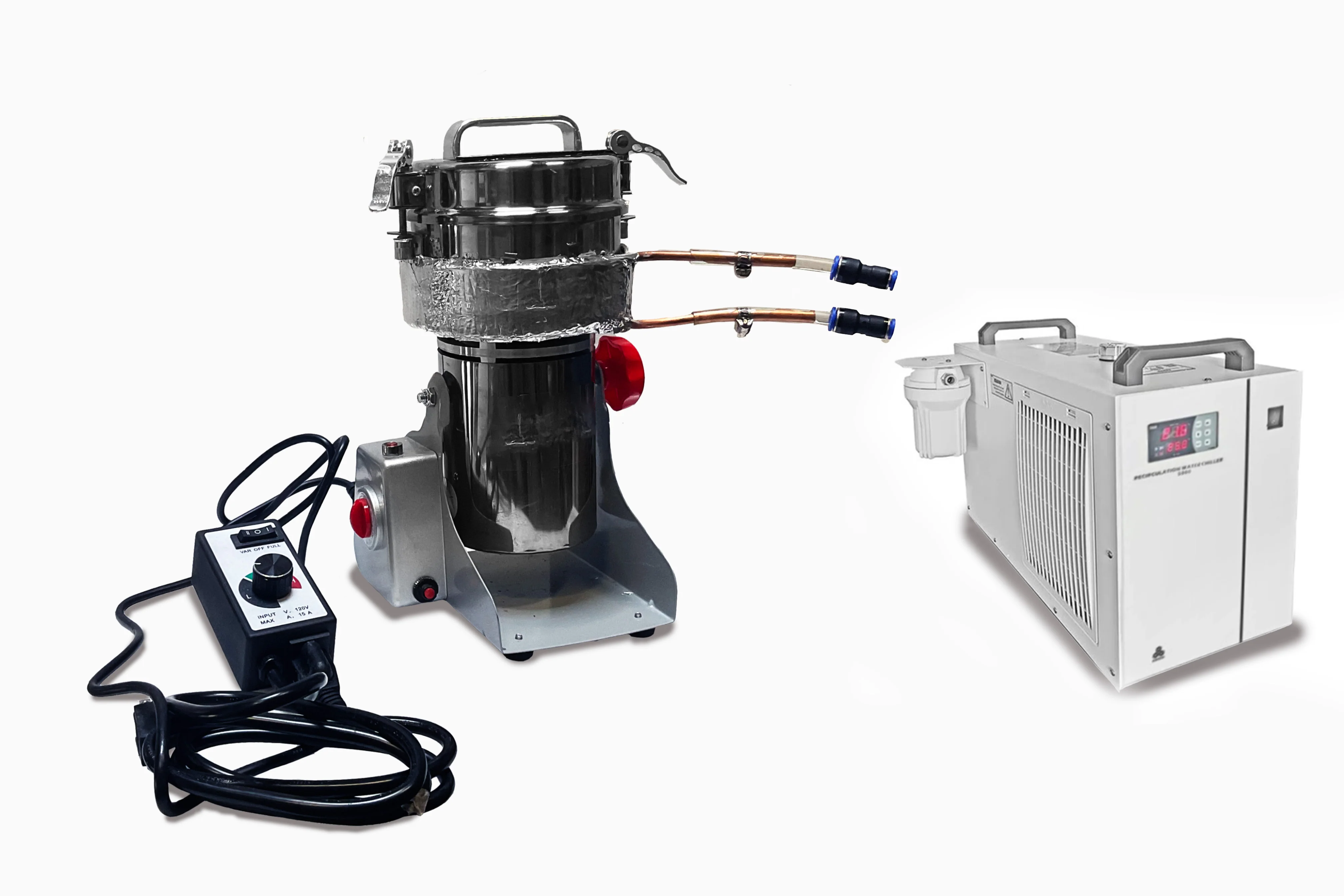

Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC

• AC110V, Single Phase, 60Hz

• 1800W

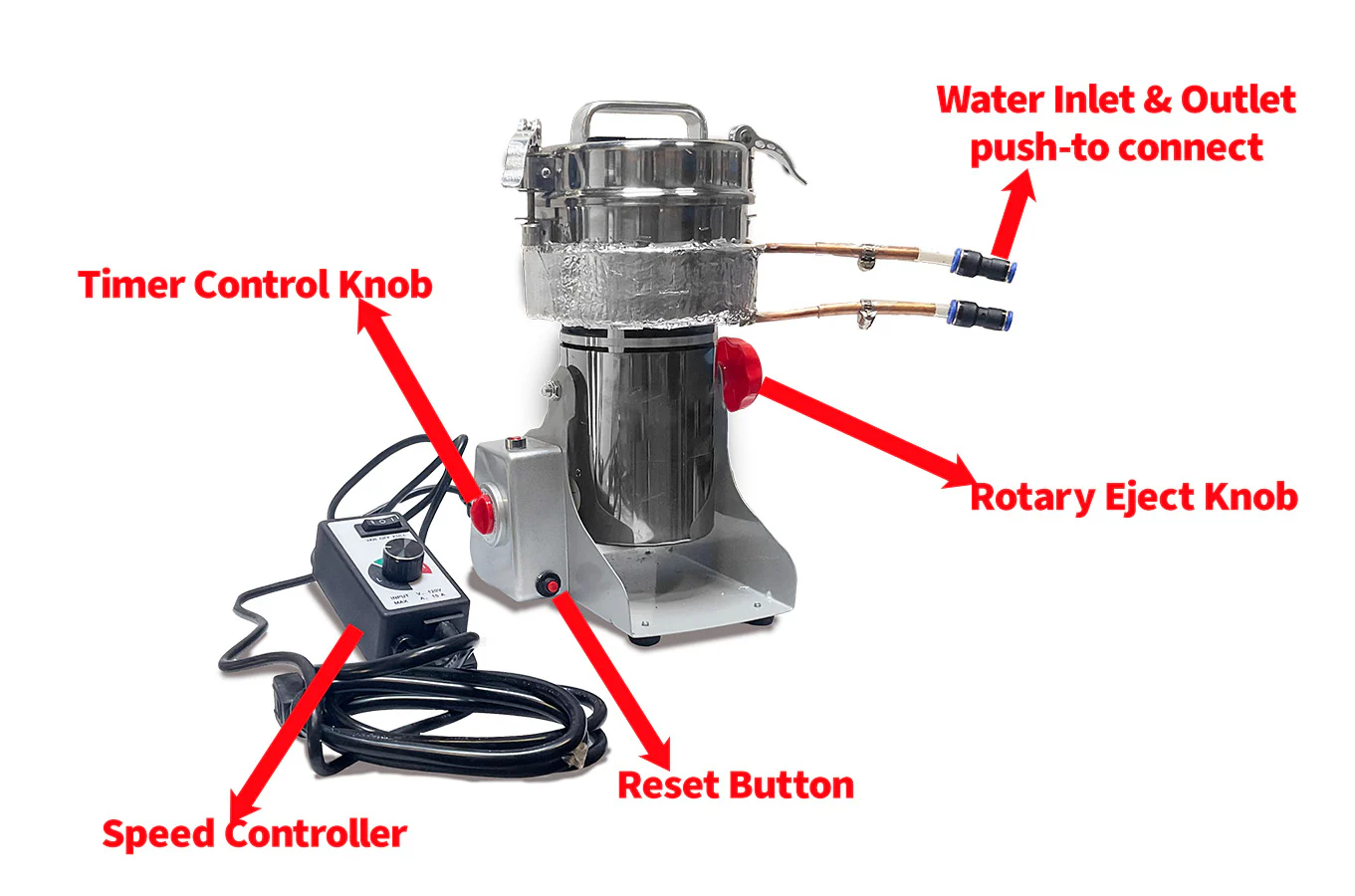

Structure

• The dispenser and mixing Chamber are constructed of SS304 stainless steel to offer corrosion resistance.
• A top-mounted water cooling coil is used to keep the mixing chamber temperature during operation.
• Two Dispenser Cover Lock Screws ensure structural stability during operation.
• Built-in Fixing Knob Lock and Eject handle enable to unload sample by rotating the mixing chamber, no lifting required.
• Built-in Timer Control Knob for precision time setting of operation time.
• A Speed Controller is connected to the device via an extension cord for adjustable rotation speed.

Mixing Chamber

• Interior Mixing Chamber Dimension: Dia 150mm x 80mm H
• Mixing chamber is made of SS304 stainless steel
• Built-in three-layer SS304 Stainless-steel mixing blades
• Max. Mixing Speed: 28000 RPM
• Max. Capacity: 400g
• Feeding Granularity: 70-300 mesh.

Time Control

• A built-in Timer Control Knob on the left side of the dispenser allows to setup the mixing duration.
• Adjustable Operational Duration: 0-5 minutes

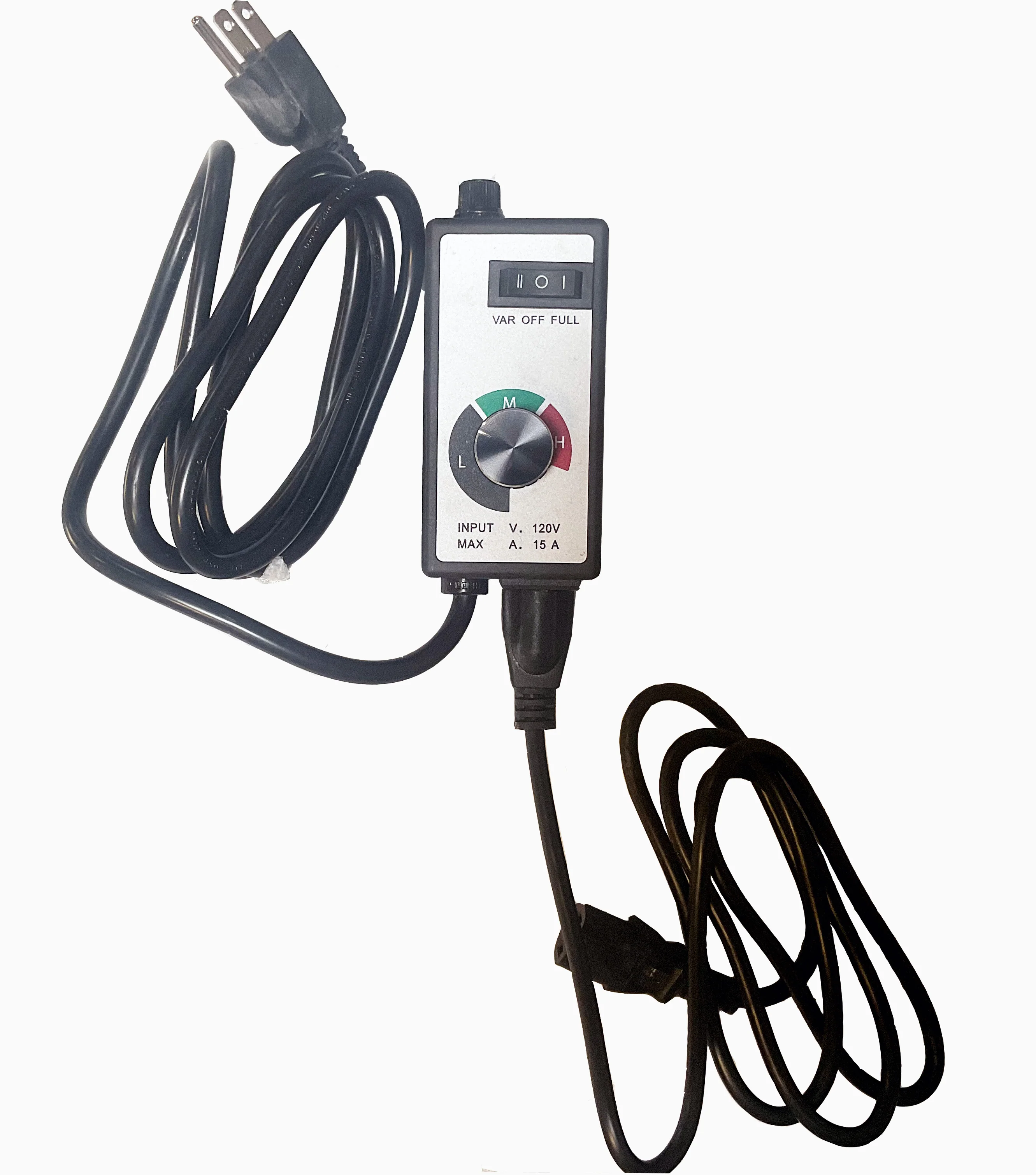

Speed Controller

• A separated Speed Controller is connected to the dispenser via a extension cord. with a built-in fuse for electrical circuit protection.
• Rated Voltage: AC110V
• Rated Current: 15A
• Max. Output Power: 1800W
• Required an extension cord of 15 amps (up to 50ft) at 18 AWG

 Dual Operation Modes:

VAR Mode: Allows adjustable mixing speed by rotating the rotary knob to select: Low, Medium, High.

FULL Mode: Operates the Dispenser at maximum fixed speed for high-intensity mixing applications.

Water Cooling Unit

• Recirculating Water Chiller with 6 Liters  Tank, 16L/min -KJ5000 is included for immedaite using

• CE Certified

• It is excellent for mixing dry powder only at a lower temperature in the mixing chamber. ( < 10oC)
• For optimal performance and longevity of this device, thoroughly clean the mixing chamber with ethanol and dry the surface after each use.
• This water chiller is included to keep the chamber temperature less the 6oC
• Warning:  this mixer is not suitable for wet mixing
• You may click the link below to find more advanced mixer
•
