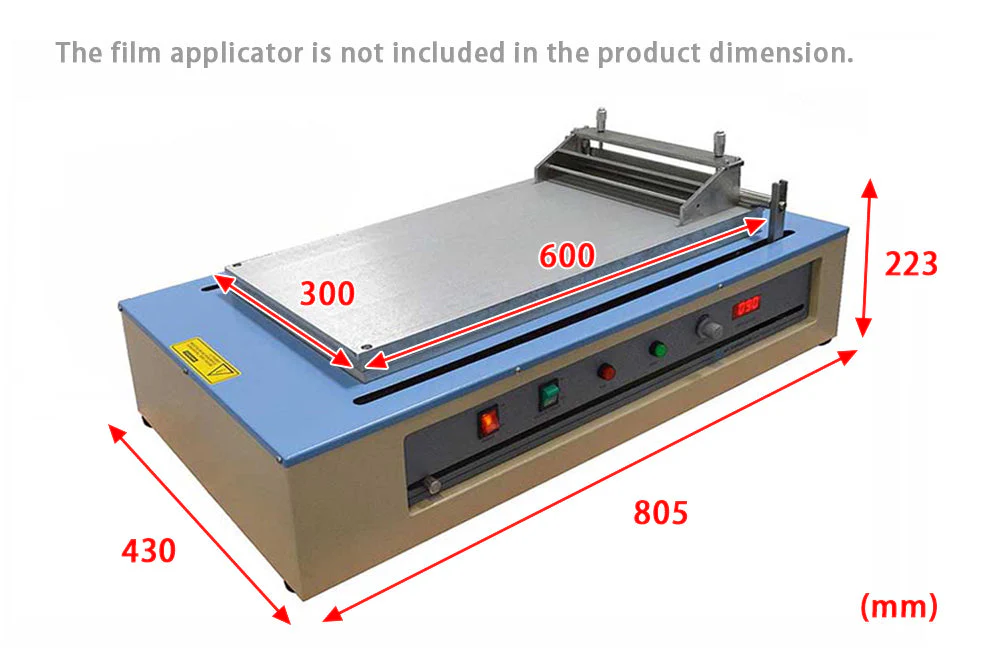

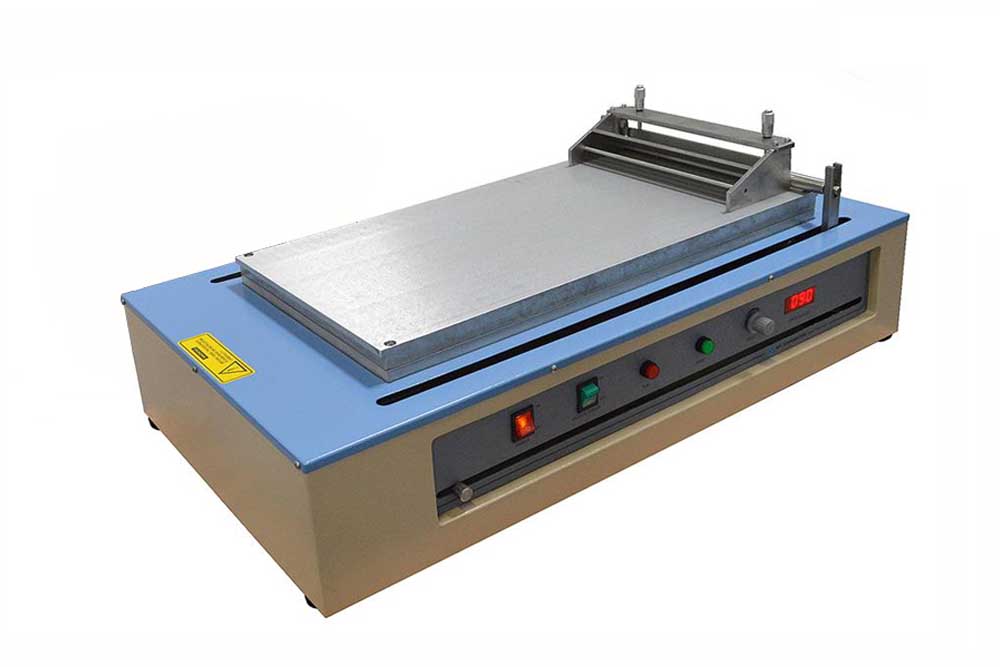

Sheet Film Coater w/ Vacuum Chuck ( 300Wx600L mm) & 250mm Doctor Blade - MSK-AFA-II-VC

Sheet Film Coater w/ Vacuum Chuck ( 300Wx600L mm) & 250mm Doctor Blade - MSK-AFA-II-VC

MSK-AFA-II-VC is a Large Automatic Film Coater with a Vacuum chuck ( 300 mm W x 600mm L) designed to produce films with consistent thickness by using thickness adjustable applicators. It has a unique driving system to produce a smooth coating on all types of materials. The vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One 250 mm width gap adjustable applicator is included. This machine can be used for research on SOFC and Li-Ion battery electrode coating.

SPECIFICATIONS

Working Voltage
  • INPUT: 24VDC
  • One UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption
  • 100W

Traverse Speed
  • 5 - 100 mm/sec variable
  • Accuracy: 10mm/sec
Stroke Length
  • 10 - 550 mm adjustable by using the Adjustable Position Switch
Vacuum chuck
  • Vacuum chuck made of Aluminum alloy with < 1 mm holes. The hole distance is around 14.8 mm.

Vacuum Pump (Optional, not included)
  • Please click the checkbox to order CE Compliance 120L/min Oilless Vacuum Pump

Film Applicator

  • 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 - 5 mm
  • Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
  • Note: The Thinnest film that can be achieved is > 10 microns
Compliance
  • CE certified
  • NRTL / CSA certification is available upon request at an extra cost.




Application Notes



  • Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
  • It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
  • May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
  • You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
Pic.1 Pic 2   Pic 3  Pic. 4  Pic 5


STANDARD PACKAGE

Item Description Qty
1 Large Automatic Film Coater 1
2 Traverse Pusher 1
3 Micrometer Adjustable Film Applicator - 250 mm (film casting doctor blade) EQ-Se-KTQ-250 1
4 Power Cable (Note: 220V Power plug is not included. Please click here to order) 1
5 Waste Plate 1
6 120L/min Oilless Vacuum Pump  optional



$1,399.30

Original: $3,998.00

-65%
Sheet Film Coater w/ Vacuum Chuck ( 300Wx600L mm) & 250mm Doctor Blade - MSK-AFA-II-VC—

$3,998.00

$1,399.30

Product Information

Shipping & Returns

Description

MSK-AFA-II-VC is a Large Automatic Film Coater with a Vacuum chuck ( 300 mm W x 600mm L) designed to produce films with consistent thickness by using thickness adjustable applicators. It has a unique driving system to produce a smooth coating on all types of materials. The vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One 250 mm width gap adjustable applicator is included. This machine can be used for research on SOFC and Li-Ion battery electrode coating.

SPECIFICATIONS

Working Voltage
  • INPUT: 24VDC
  • One UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption
  • 100W

Traverse Speed
  • 5 - 100 mm/sec variable
  • Accuracy: 10mm/sec
Stroke Length
  • 10 - 550 mm adjustable by using the Adjustable Position Switch
Vacuum chuck
  • Vacuum chuck made of Aluminum alloy with < 1 mm holes. The hole distance is around 14.8 mm.

Vacuum Pump (Optional, not included)
  • Please click the checkbox to order CE Compliance 120L/min Oilless Vacuum Pump

Film Applicator

  • 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 - 5 mm
  • Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
  • Note: The Thinnest film that can be achieved is > 10 microns
Compliance
  • CE certified
  • NRTL / CSA certification is available upon request at an extra cost.




Application Notes



  • Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
  • It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
  • May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
  • You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
Pic.1 Pic 2   Pic 3  Pic. 4  Pic 5


STANDARD PACKAGE

Item Description Qty
1 Large Automatic Film Coater 1
2 Traverse Pusher 1
3 Micrometer Adjustable Film Applicator - 250 mm (film casting doctor blade) EQ-Se-KTQ-250 1
4 Power Cable (Note: 220V Power plug is not included. Please click here to order) 1
5 Waste Plate 1
6 120L/min Oilless Vacuum Pump  optional
