Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV

Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV

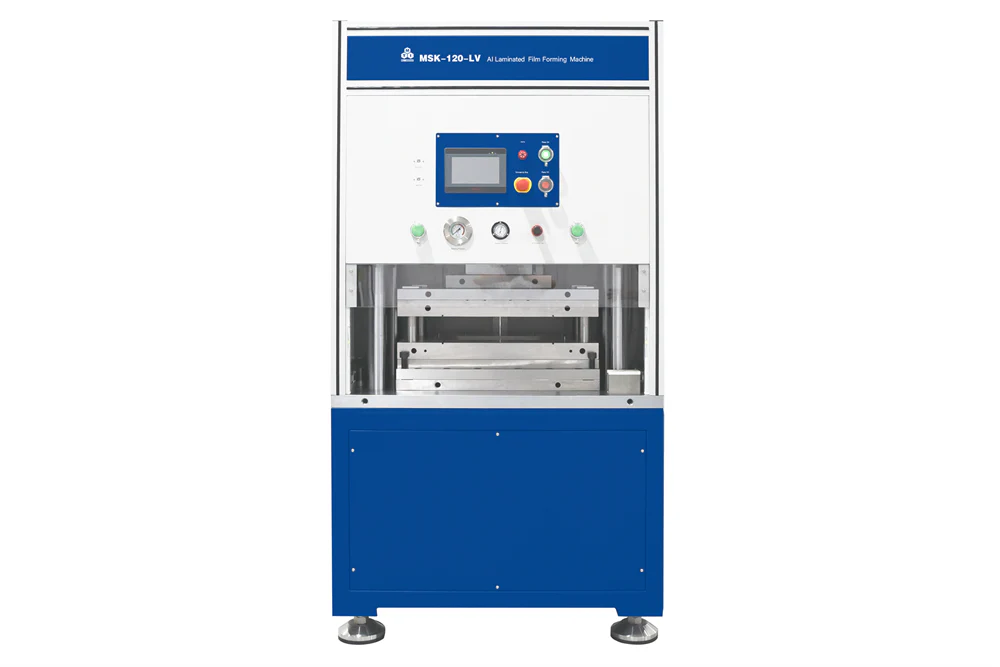

MSK-120-LV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment.
The maximum pouch cell can be punched is L380 * W310 mm (no airbag mode)

SPECIFICATIONS:
Features
  • Gas/Electrical driven.
  • The pouch cell forming depth, punching pressure, and speed are programmable
  • Case forming die set with high strength and precision.
  • Display for case forming time
  • PLC Control
Voltage and Power
  • AC 220V±10%, 50/60 Hz, single phase (AC110V is available upon request)
  • Maximum power: 1500 W
Customized Die Size
Customer can choose the punching die size within the following types:
  • Dual Concaves, Folded (with airbag): Max. L190*W250mm (punching airbag width: 50 mm).
  • Single Concave, Folded (with airbag): Max. L205*W250mm (punching airbag width: 50 mm).
  • Single Concave, Four-side sealing (with airbag): Max. L380*W250mm (punching airbag width: 50 mm).
  • Single Concave, Four-side sealing (no airbag): Max. L380*W310mm
Air Pressure Requirement
  • 0.5 - 0.8 MPa Air or inert gas
  • Air Compressor is not included. Please click here to order.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
Max. Cup Depth
  • Maximum 6.0 mm
  • Precision: ± 0.05 mm
  • Punching distance: 90 mm.
Max. Punching Pressure
  • 3T for case forming with servo motor; Case pressing force is up to 30 T (adjustable with pneumatic cylinder)
Production Efficiency
  • ~150-200 pcs/h
Al Laminated Film
  • The thickness of Aluminum Laminated Film: 0.10 mm - 0.20 mm is acceptable
  • Please click the picture below to order Aluminum Laminated Film.
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage.
  • Following the operation manual when installing the die.
  • MTI is not responsible for the damage caused by desperation.







$26,593.00

Original: $75,980.00

-65%
Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV—

$75,980.00

$26,593.00

Product Information

Shipping & Returns

Description

MSK-120-LV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment.
The maximum pouch cell can be punched is L380 * W310 mm (no airbag mode)

SPECIFICATIONS:
Features
  • Gas/Electrical driven.
  • The pouch cell forming depth, punching pressure, and speed are programmable
  • Case forming die set with high strength and precision.
  • Display for case forming time
  • PLC Control
Voltage and Power
  • AC 220V±10%, 50/60 Hz, single phase (AC110V is available upon request)
  • Maximum power: 1500 W
Customized Die Size
Customer can choose the punching die size within the following types:
  • Dual Concaves, Folded (with airbag): Max. L190*W250mm (punching airbag width: 50 mm).
  • Single Concave, Folded (with airbag): Max. L205*W250mm (punching airbag width: 50 mm).
  • Single Concave, Four-side sealing (with airbag): Max. L380*W250mm (punching airbag width: 50 mm).
  • Single Concave, Four-side sealing (no airbag): Max. L380*W310mm
Air Pressure Requirement
  • 0.5 - 0.8 MPa Air or inert gas
  • Air Compressor is not included. Please click here to order.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
Max. Cup Depth
  • Maximum 6.0 mm
  • Precision: ± 0.05 mm
  • Punching distance: 90 mm.
Max. Punching Pressure
  • 3T for case forming with servo motor; Case pressing force is up to 30 T (adjustable with pneumatic cylinder)
Production Efficiency
  • ~150-200 pcs/h
Al Laminated Film
  • The thickness of Aluminum Laminated Film: 0.10 mm - 0.20 mm is acceptable
  • Please click the picture below to order Aluminum Laminated Film.
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage.
  • Following the operation manual when installing the die.
  • MTI is not responsible for the damage caused by desperation.
