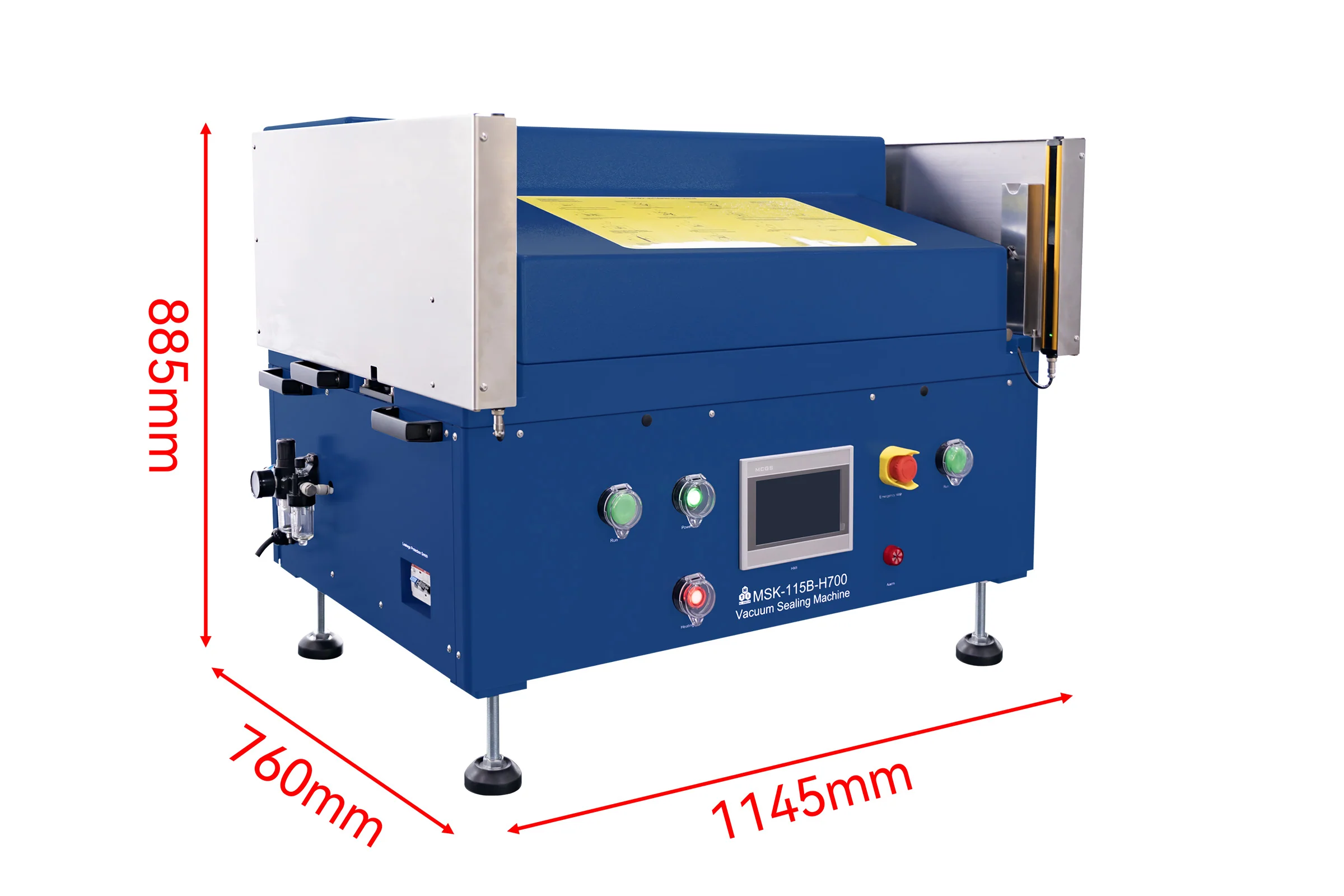

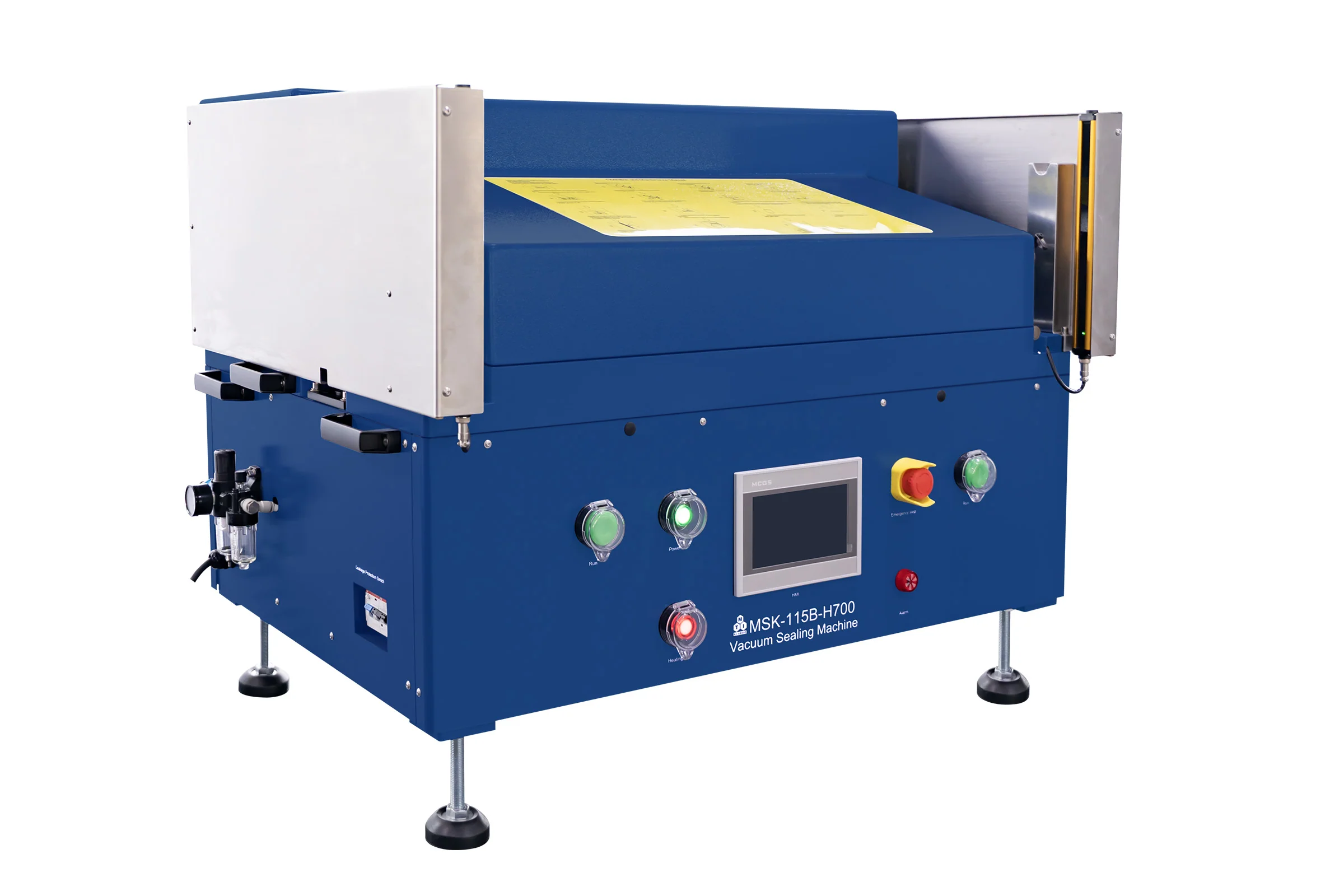

Large Multi-Functional Vacuum Sealer For Pouch Cell (650x340x20mm) - MSK-115B-H700

• AC 220V +/- 10%, 50/60Hz. single phase
• Power consumption: 3 KW
• A power cable is included, but no power plug

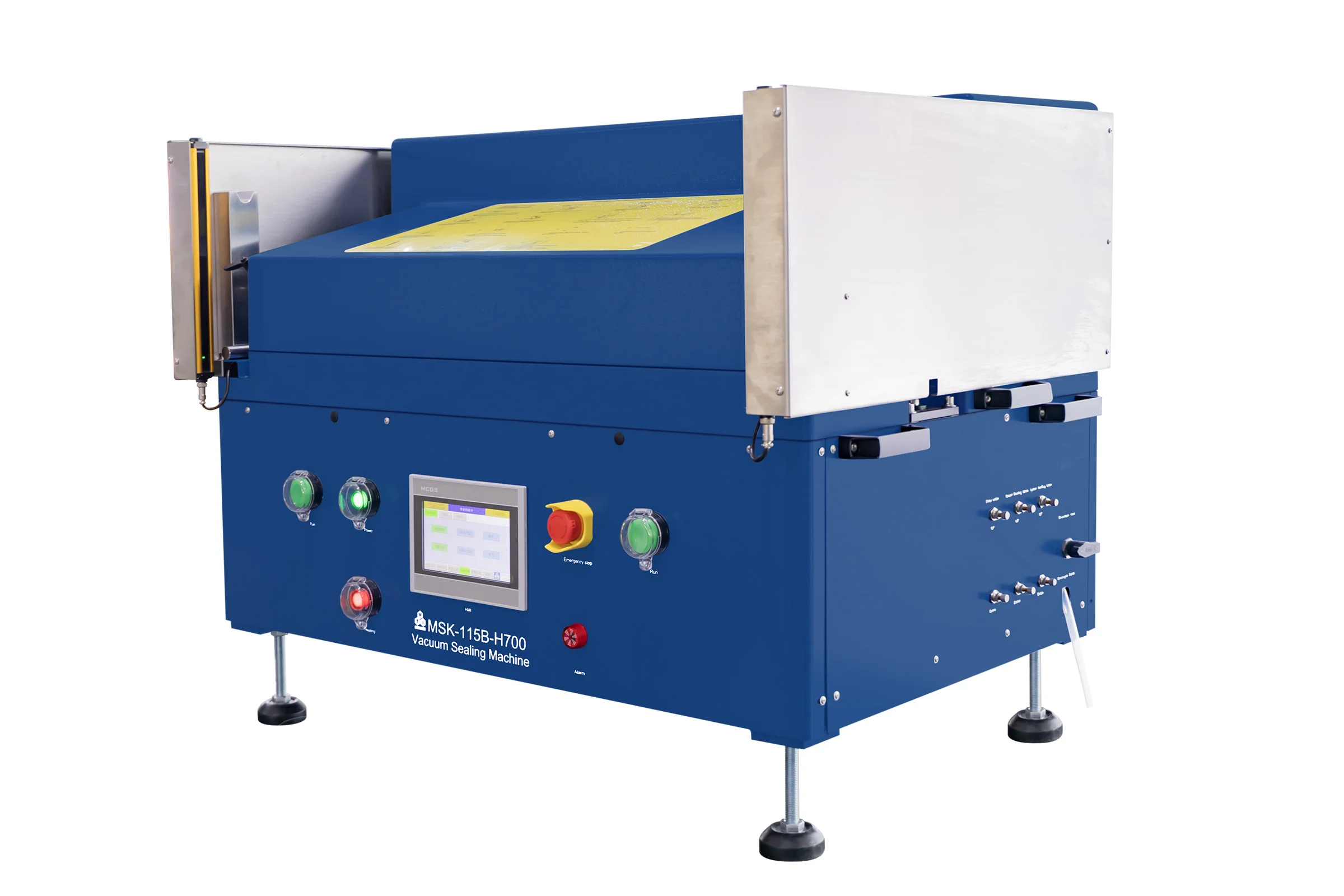

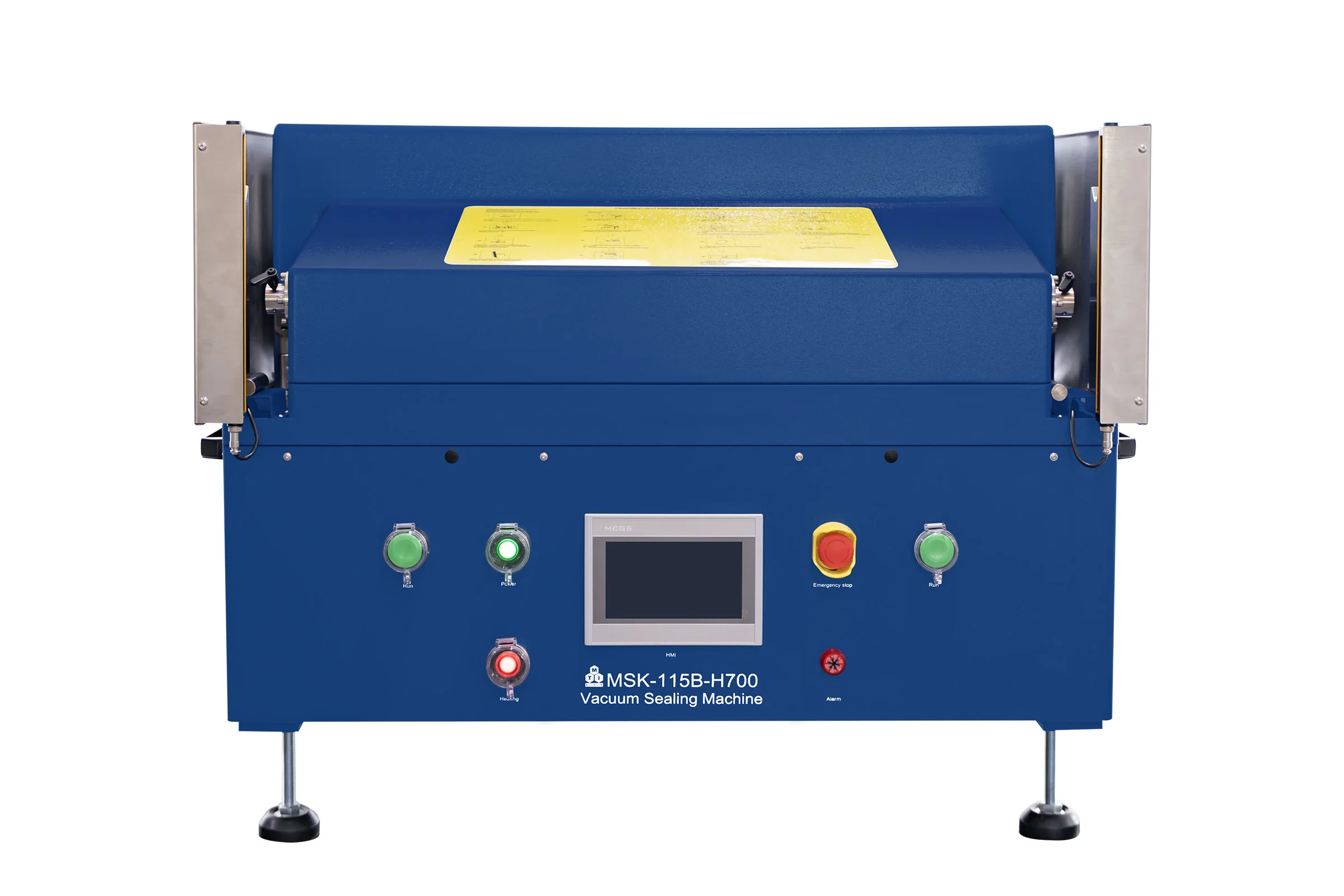

Control Panel

• 7" touchscreen panel controls all necessary parameters for automatic operation, including:

  • Purge pressure and duration, cycle number (-95Kpa - 0 Kpa)
  • Sealing mode: top/side sealing without vacuum, and vacuum standing, and vacuum sealing
  • Sealing Temperature: Max. 250ºC Max. ( +/- 5 ºC) adjustable.
  • Vacuum standing time： 0 - 900 s Adjustable
  • Heated sealing time: 0 - 90 s, adjustable （ 3 - 4 seconds）
• Note
  • A compressive air pump or inert gas cylinder will be needed. Pls click pic 1 to order
  • The vacuum pump is required for vacuum standing and final sealing ( optional, click pic 2 to order)


Pic. 1Pic. 2

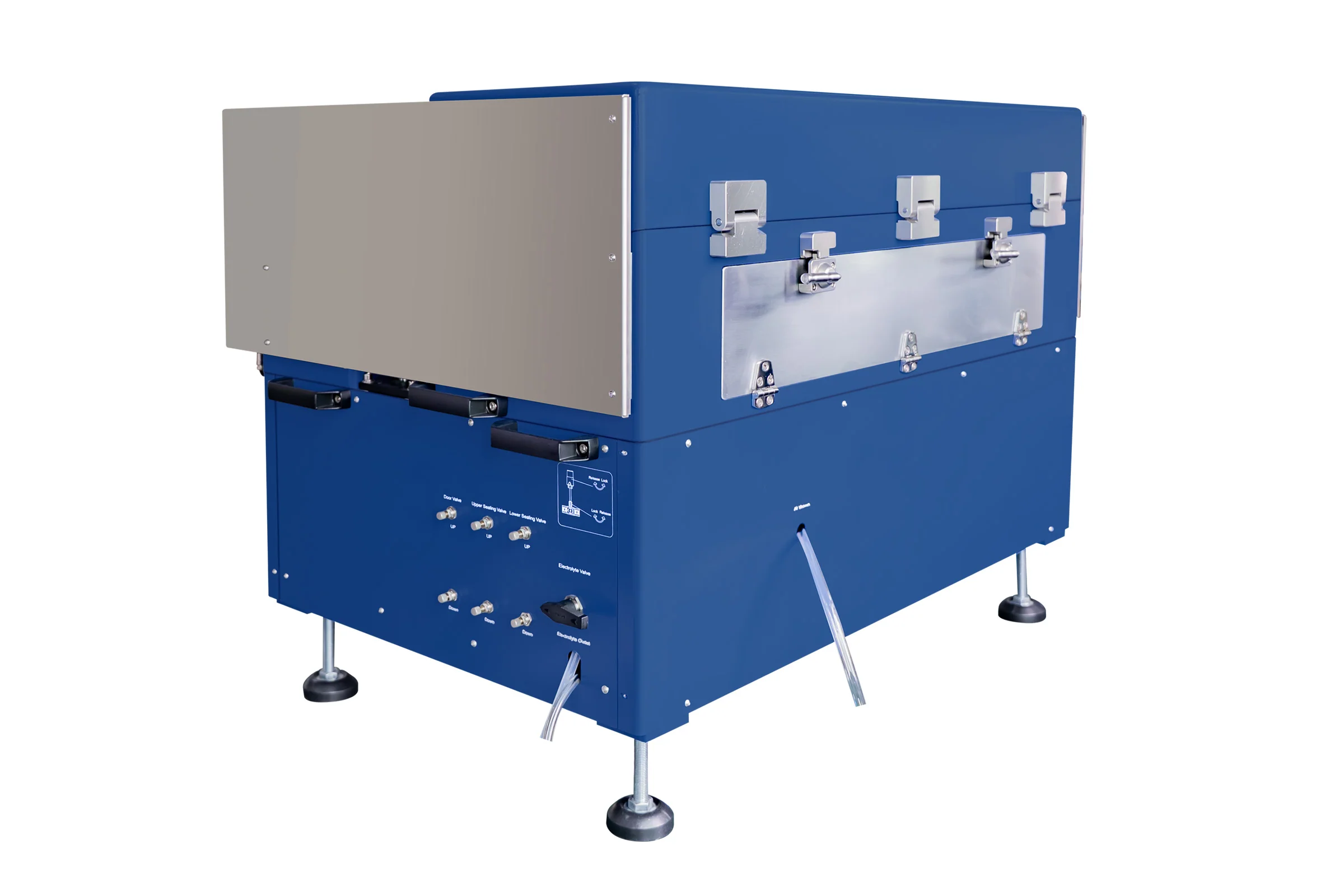

Back Panel

• Inert gas & compressive gas port on the side panel, and vacuum ports are installed on the back panel
• You need an air compressor to operate ( optional, click above Pic. 1 to order)
• You need an inert gas tank to purge the chamber (not included)

• Maximum pouch cell size: 650mm(L) x 340mm(W) x 12mm(T)


Spring Loaded Pressure Board

• A spring loaded pressure board to squeeze air from the stacked cell in pouch cell before vacuuming
• Produces a much tighter and neater sealing result
• Max. working pouch cell thickness: 16mm

• Copper made a sealing blade with rubber buffer (soft-sealing)
• L650mm x W6 mm (The sealing blade depth and width could be customized at an extra cost)
• Parallelism tolerance: 0.04 mm

• Maximum: 4.2 kN

• Max, 250°C adjustable with control accuracy of +/-5°C
• 200°C for top-sealing blade and 180°C for bottom-sealing blade

• CE Certified
• NRTL or CSA certification is available upon request at the extra cost

• This is heavy equipment. Please use a Forklift to move in or out from the glovebox!
