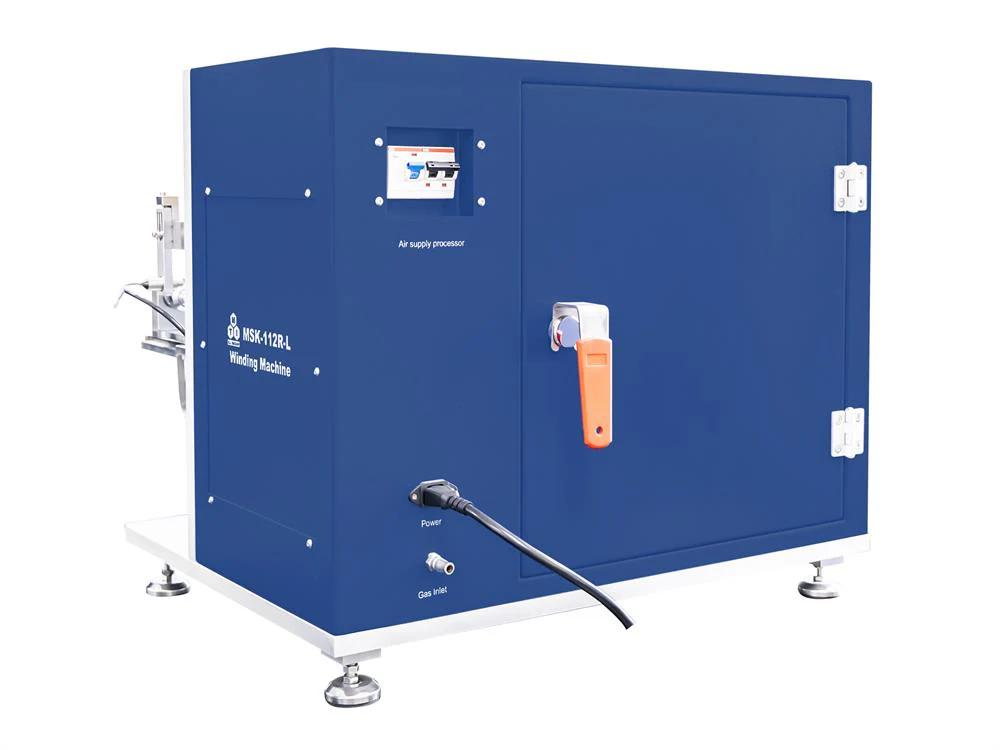

Automatic Winding Machine for Cylindrical Cell from 18650 - 4680 up to 50100) with Tabless Structure, MSK-112R-L

MSK-112R-L is used in the winding process of lithium-ion battery electrodes. It adopts passive unwinding, manual cutting, manual pulling, guide slot positioning, automatic winding, manual glue application, and manual unloading. Suitable for laboratories to explore the process of products.

SPECIFICATIONS:

Features	Suitable for electrode winding for 4680 or even larger cylindrical cells with tabless structure. Passive unwinding, automatic estimation of roll length, manual electrode pulling, automatic winding, manual unloading, and manual gluing. Adjustable electrode guide slot positioning, guide groove position , and width. Adjustable winding speed and number of winding circles Winding tension is controlled by unwinding friction PLC control, touch screen setting. Small occupancy for laboratory use.
Power & Voltage	Single-phase AC220V±10%, 50/60Hz Power: 200W
Process Introduction	Winding Core
Winding Needle	Φ3.5 mm
Electrode Core	Diameter Max.Φ50mm, Length Max.100mm
Guide Slot	Width Max.100mm (adjustable)
Roll Size	Core Φ3 inch Max. Φ250mm
Winding Speed	Max. 300r/min (adjustable)
Compressed Air (separate purchase)	Compressed air of 0.5 MPa is needed for the operation of this machine Please note the air compressor is not included. Please click the picture below to order one at MTI, or order it from your local hardware store Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Electrode Material	Max. Width 100mm Max. Roll Diameter 250mm
Separator Material	Max. Width 100mm Max. Roll Diameter 150mm Thickness ≥9µm
Optional	MTI provides complete sets of equipment for the research of rechargeable battery materials. Please refer to http://www.mtixtl.com/batterycapacitorequipment.aspx Consumables can be ordered at MTI at an extra cost
