Floor-stand Semi-Auto Crimper for Batch Processing of Cylindrical Battery Casings - MSK-510-AR18650

Floor-stand Semi-Auto Crimper for Batch Processing of Cylindrical Battery Casings - MSK-510-AR18650

MSK-510-AR18650 is an semi-auto crimper designed for sealing the 18650 cylindrical battery cases. It provides a continues workflow for case batch crimping.

Advanced Features:

  • Efficient batch loading/unloading mechanism with case feeding conveyor (Optional upon request)
  • Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality
  • User-friendly human-machine interface with PLC touch screen control

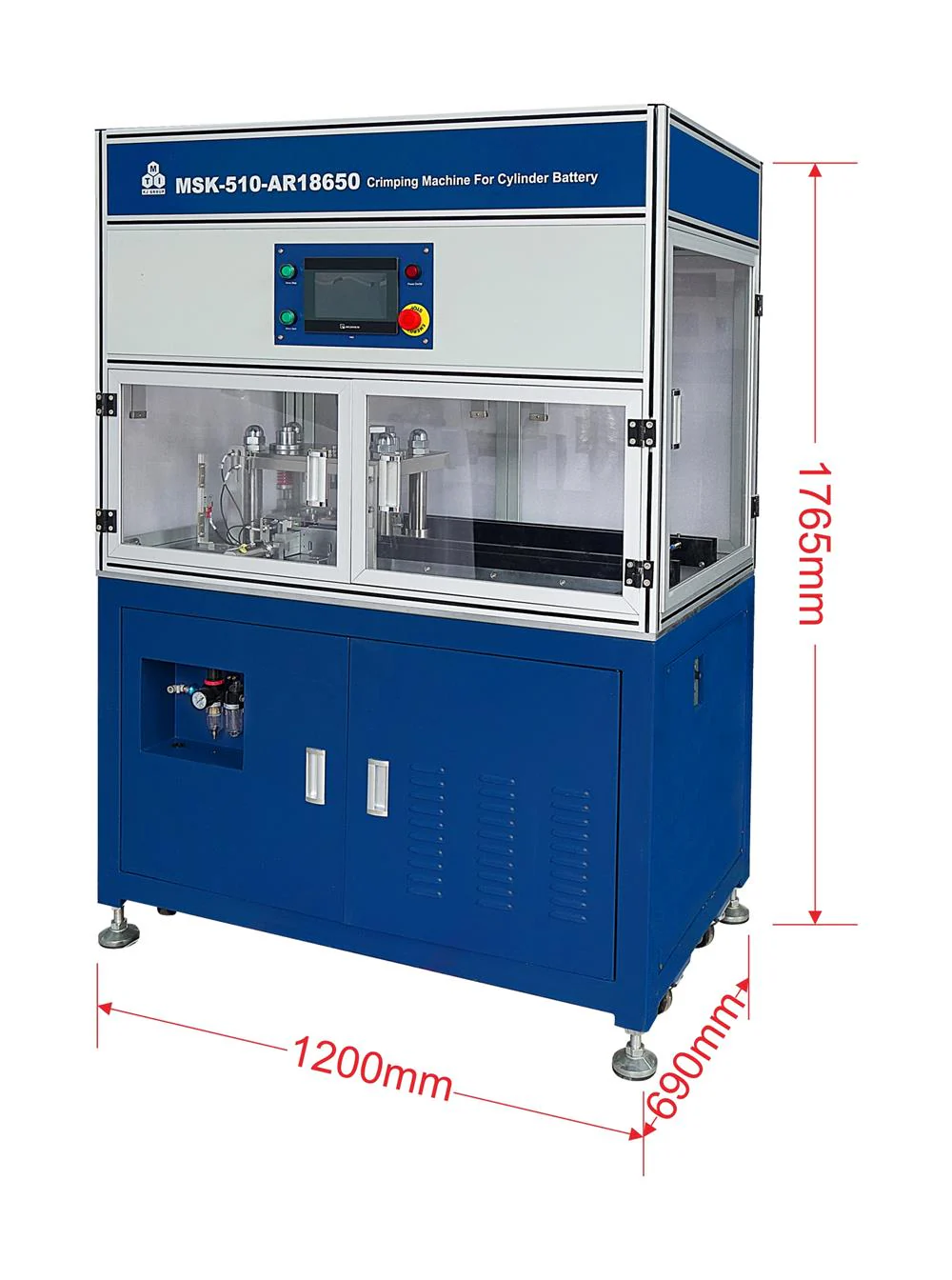

  • Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment

MTI has granted the patent 201120464653.7 for the Cylindrical Cell Automatic Crimper MSK-510-AR18650 since July 2012.

SPECIFICATIONS:

Working Voltage
  • 380VAC, Three Phases, 50/60 Hz
Max. Power Consumption
  • 4KW
Driving Force
  • Pneumatic, 0.5 - 0.8 MPa compression gas is required. (Air Compressor is not included, please click here to order.)
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
pic1 pic2
Operational Environment
  • The system needs to be operated in the dry room
Compatibility
  • Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
Control
  • User-friendly HMI with PLC touch screen control ensures easy program setup
Productivity
  • 30 pieces per minute
  • Material feeding conveyor is able to load up to 22 pcs per batch
Compliance
  • CE certified
Application Notes

Cylinder Cases and Related Components

Click hereto order spare cylindrical case

You might need an Auto Cylindrical Case Grooving Machine to form the "neck" before crimping the cell
  • Customized die for other cylindrical cell types is available upon request
  • It is necessary to groove the opening end of the cylindrical case by using the MSK-500-AR18650 auto grooving machine before sealing the cap
  • Each type of cylinder cell can only be sealed specifically by certain crimping dies. Please contact us for the corresponding crimping die of each cylinder cell type
  • Please check the chart below to order the cylindrical cases.
P/N Description (click to view details)  Case Dimensions
EQ-Lib-18650 100 pcs 18650 cylindrical case
EQ-Lib-CR123 100 pcs CR123 cylindrical case

EQ-Lib-21700

 100 pcs 21700 cell case
EQ-Lib-26650 100 pcs 26650 cylindrical case
EQ-Lib-32650 60 pcs 32650 cylindrical case
EQ-Lib-AA
100 pcs AA cylindrical case
