1100°C Max. Large Molten Salts Reactor (64L) With Moveable Electrodes for Electrolysis - VEF-1100-64-L

• 9.5 KW, 208 - 240V single phase, 50/60Hz
• AC 208, 400V, 480V, 3-phase is also available upon request.
• A 10-foot power cord is included. No power plug.

• 5 side heating  chamber with dimensions of 400x400x400 mm  ( ~64L, 16 x 16 x 16")
• Working temperature ≤1100℃ Max.   1000 °C continuous.
• Heating rate: ≤ 20℃/min
• Uniform Area 300 × 300 × 300 mm ±2℃


• PID automatic control and auto-tune function
• ±1°C accuracy
• 50 programmable segments for precise process

• Built-in interlocks for overheating and thermocouple failure


• K type for furnace temperature control
• K type for in-situ temperature monitor (optional)

• Ø300 × 300 mm Crucible as a reactor
• A Quartz Positioning Frame for electrode alignment

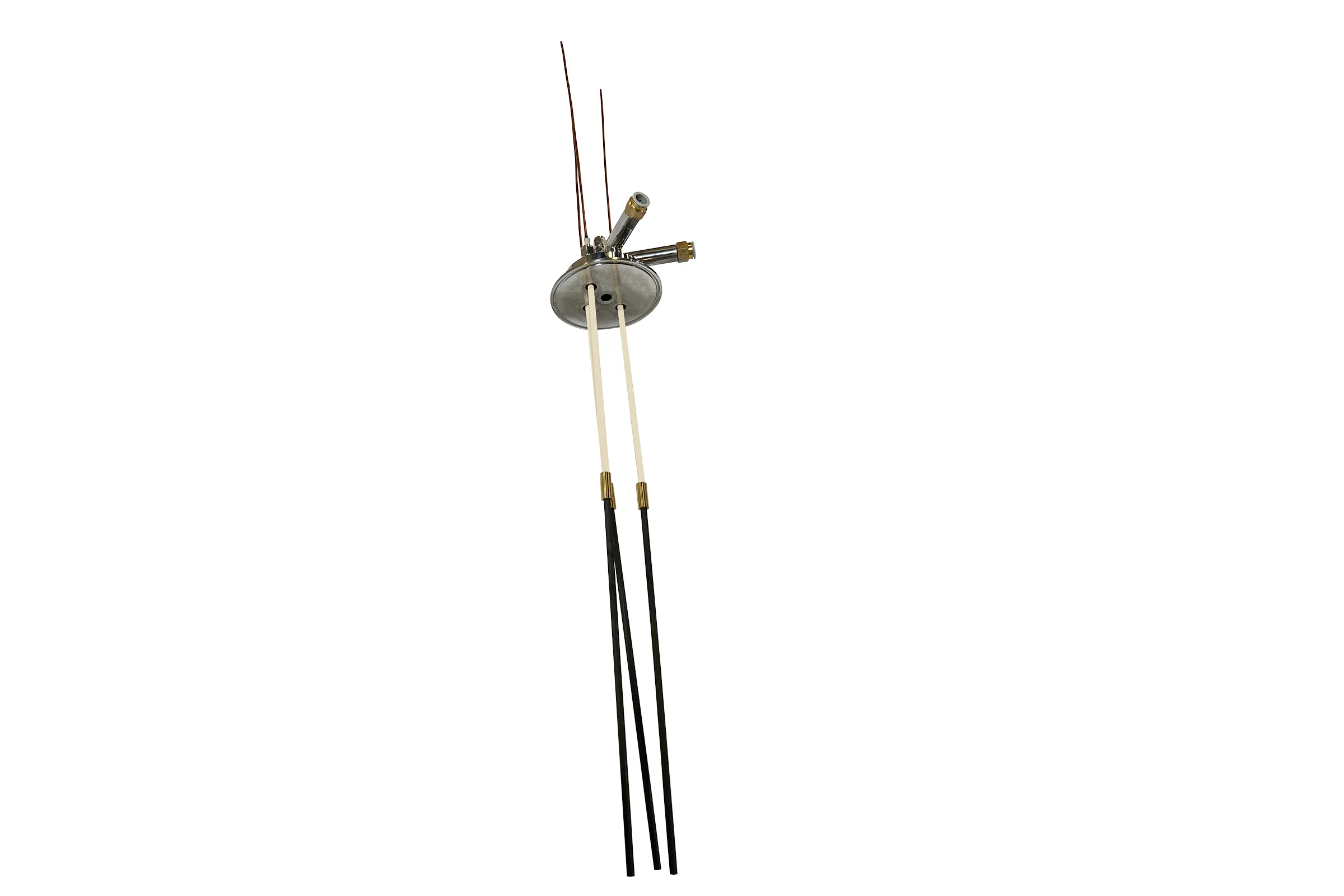

• Three 1/4" copper electric feedthroughs with copper barrel connectors for connections with any type of Ø12.7 mm electrodes (electrodes are not included)

• 1/2" compression tube fittings
• Graphite electrodes are available upon request

Secondary Materials Charger (Optional)

• Secondary materials feeder with a KF25 Port
• Three different materials can be filled in the feeder during the experiment. (50ml each zone)


Water Chiller

• 58L/minute water cooling is included to cool the vacuum flange and the electrode
•


• The vacuum pump is optional for pump-purge cycles
• MTI recommends getting a 156 L/min vacuum pump or equivalent for a pressure <5e-2 torr.

DC Power Supply

• A programmable DC power supply is optional up to 30V DC, and 100A Max

• CE Certified
• NRTL Certification is available upon request; additional charges will apply
