1100 °C Four Chamber Compact Furnace (100*100*100mm) w. Independent Controllers- KSL1100XS4

1100 °C Four Chamber Compact Furnace (100*100*100mm) w. Independent Controllers- KSL1100XS4

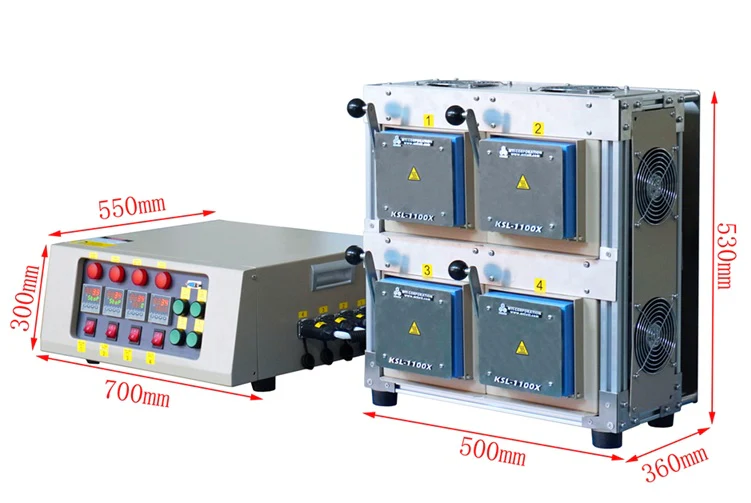

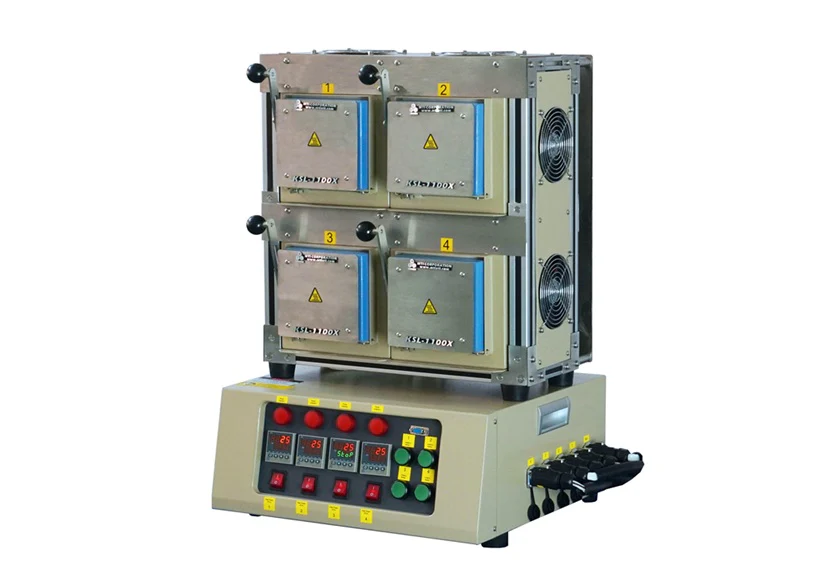

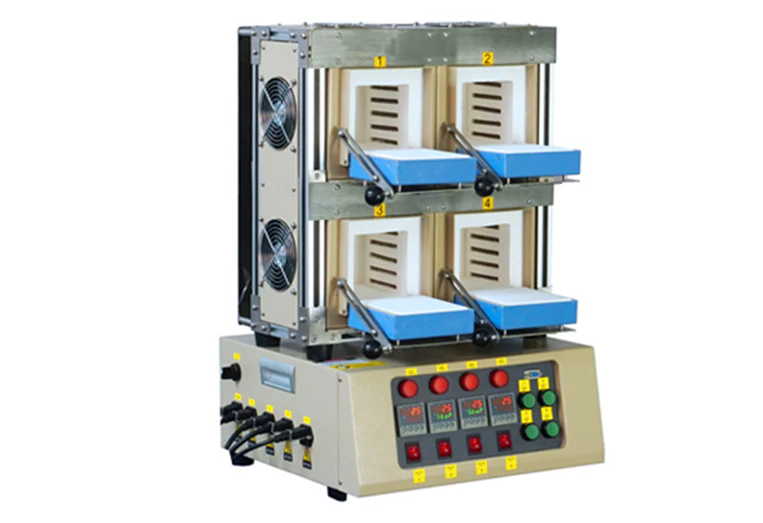

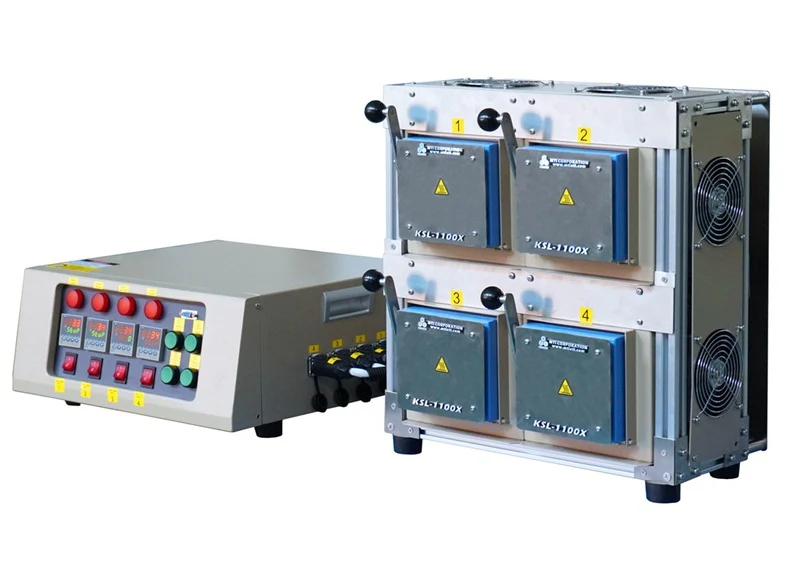

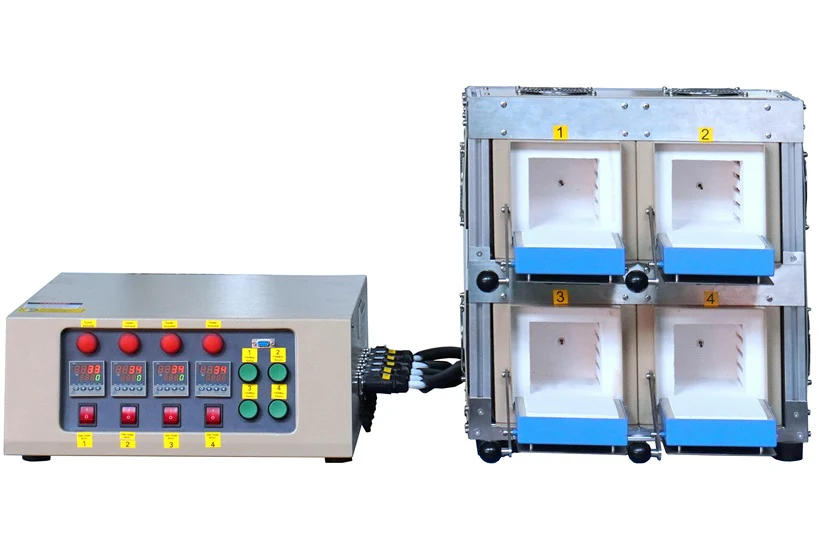

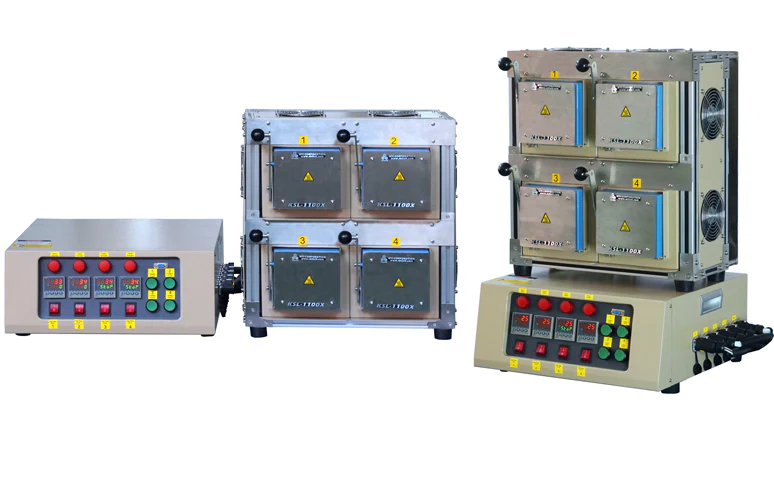

KSL-1100X-S4 is a four-chamber box furnace integrated with four KSL1100XS compact furnaces. Each Heating chamber size is 100*100*100mm with an independent temperature controller with max working temperature of 1100 °C. The furnace is designed for high-throughput processing of multiple samples with at different temperatures. This equipment has a separated control unit with a small footprint, which can be placed into a glovebox for processing air-sensitive materials

SPECIFICATIONS:

Furnace Structure
  • Each module is independently temperature controlled, with a maximum temperature of 1100°C.
  • Simultaneously accommodate four samples for heat treatment at different temperatures
  • High-purity alumina fiber chamber coated with an alumina layer to enhance heating efficiency and extend the lifespan
  • Double-shell structure with a built-in air cooling system for surface cooling
Specifications
  • Voltage: AC220V 50/60HZ, (single-phase 220V)
  • Power: 4.8 KW total
  • Heating rate: ≤10/min
  • Chamber size: 100*100*100mm for each chamber.
Thermocouples
  • K-type x4

Working Temp.
  • Continuous Working Temperature 1000°C
  • Maximum Working Temperature 1100°C (< 30 mins)
Temperature Control
  • Four independent programmable temperature controllers.
  • PID automatic temperature control system
  • Intelligent 30-stage programmable control
  • Temperature control accuracy: ±1.
  • Default DB9 PC communication connection port with software which can be operated by a laptop computer.
Compliance
  • CE certificated
  • NRTL certification by a third party is available at additional cost.

Warning &
Application note
  • MTI does not recommend that customers to use flammable, explosive, or toxic gases(materials).
  • Keep the equipment away from areas prone to liquid splashing and magnetic or conductive powders
  • Insulation and heating elements are consumables. Cracks in insulation material during sintering are normal; they can be repaired using patching agents.
  • There might be temperature fluctuations during low-temperature(below 300) operation
  • DO NOT open the furnace at temperatures exceeding 500
$1,644.30

Original: $4,698.00

-65%
1100 °C Four Chamber Compact Furnace (100*100*100mm) w. Independent Controllers- KSL1100XS4—

$4,698.00

$1,644.30

Product Information

Shipping & Returns

Description

KSL-1100X-S4 is a four-chamber box furnace integrated with four KSL1100XS compact furnaces. Each Heating chamber size is 100*100*100mm with an independent temperature controller with max working temperature of 1100 °C. The furnace is designed for high-throughput processing of multiple samples with at different temperatures. This equipment has a separated control unit with a small footprint, which can be placed into a glovebox for processing air-sensitive materials

SPECIFICATIONS:

Furnace Structure
  • Each module is independently temperature controlled, with a maximum temperature of 1100°C.
  • Simultaneously accommodate four samples for heat treatment at different temperatures
  • High-purity alumina fiber chamber coated with an alumina layer to enhance heating efficiency and extend the lifespan
  • Double-shell structure with a built-in air cooling system for surface cooling
Specifications
  • Voltage: AC220V 50/60HZ, (single-phase 220V)
  • Power: 4.8 KW total
  • Heating rate: ≤10/min
  • Chamber size: 100*100*100mm for each chamber.
Thermocouples
  • K-type x4

Working Temp.
  • Continuous Working Temperature 1000°C
  • Maximum Working Temperature 1100°C (< 30 mins)
Temperature Control
  • Four independent programmable temperature controllers.
  • PID automatic temperature control system
  • Intelligent 30-stage programmable control
  • Temperature control accuracy: ±1.
  • Default DB9 PC communication connection port with software which can be operated by a laptop computer.
Compliance
  • CE certificated
  • NRTL certification by a third party is available at additional cost.

Warning &
Application note
  • MTI does not recommend that customers to use flammable, explosive, or toxic gases(materials).
  • Keep the equipment away from areas prone to liquid splashing and magnetic or conductive powders
  • Insulation and heating elements are consumables. Cracks in insulation material during sintering are normal; they can be repaired using patching agents.
  • There might be temperature fluctuations during low-temperature(below 300) operation
  • DO NOT open the furnace at temperatures exceeding 500
