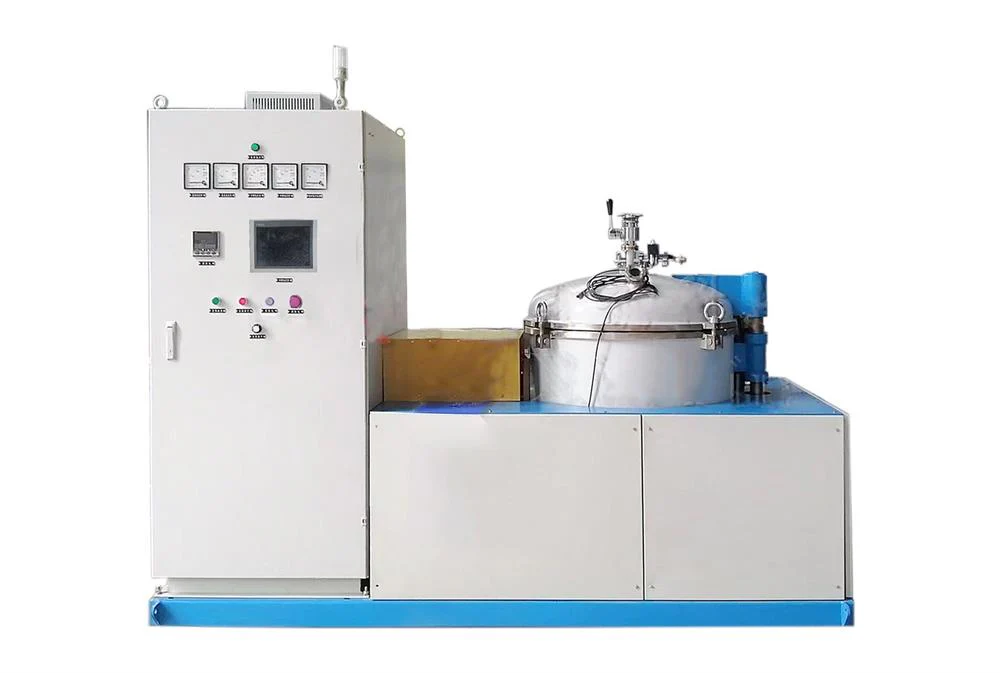

GRF3000 is a graphitization furnace up to 3000. Also, it can be used as a high-vacuum heating furnace.

SPECIFICATIONS:

Specifications	Induction Heating: IGBT power supply: 80 kW max. (Working Condition ≤60KW) Maximum Temperature: 3000 °C Continuous Temperature: 2900 °C Vacuum (≤60pa in the hot state) The protective gas( Ar) is required to operate the furnace safely and properly. Temperature Uniformity: ≤±10 Base on protective gas flow ≤10L/min, after 30 mins constant temperature PID Temperature Control Accuracy: ±1 Touch screen control panel via Mitsubishi PLC
Power	480AC +/- 10% ,three-phase, 50/60Hz A 5-meter power cable is included, without a plug A 100KW power panel is required in your facility
Furnace	Infrared Pyrometer 10003200 Induction coil: 20253 cm copper Double-layer water-cooling structure SUS321(1Cr18Ni9Ti) shell Safety Explosion-proof port Vacuum Breaker Valve Safety valve High-purity and high-density graphite crucible as a heater Heating Zone: φ240×340mm ( ~15 L capacity) Constant Temperature Zone: φ200×300mm Mechanical lifting furnace cover Flexible carbon felt as thermal insulation Fiber-reinforced corundum-mullite insulation sleeve
Water cooling & Gas purification	One recirculating water chiller is included Temperature range: 5 - 30°C Water Flow Rate: 133 L/min Click the picture to the left to see the specs One gas purification unit is included
Vacuum Pump	2XZ-15 Rotary Vane Vacuum Pump Digital vacuum gauge.

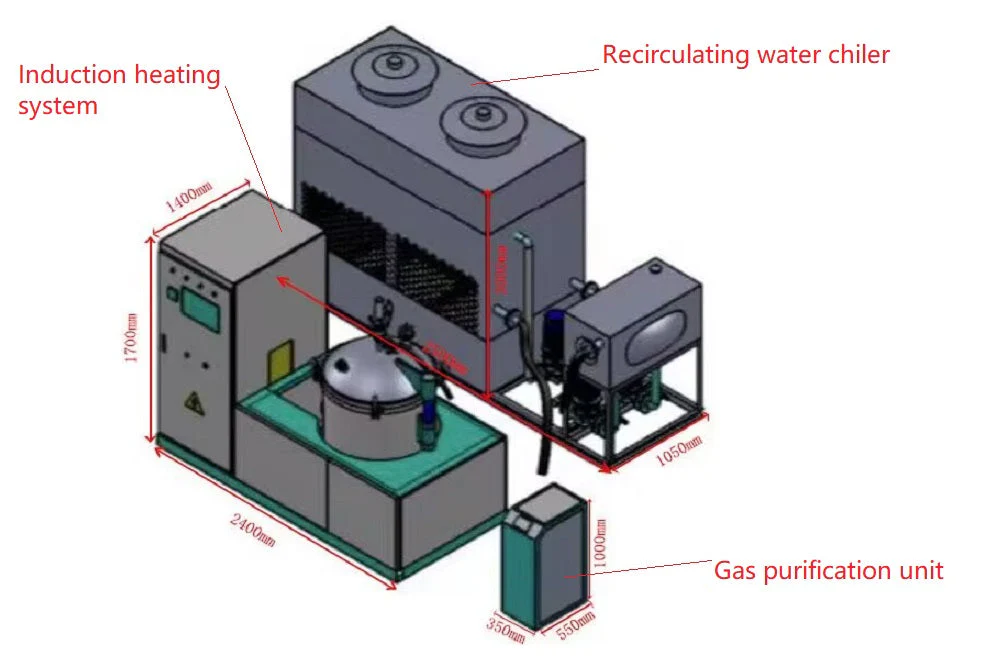

Dimension
Complaice	CE certified NRTL certification is available upon request
Warranty	One-year limited warranty with lifetime support Consumable parts such as processing tube, refractory liners, o-rings, and heating coil are not covered by the warranty
