OTF1700X-HP is a customized vacuum hot-pressing furnace to processing max. 2" diameter pellet sample with selectable heating methods from 1200 to 2000 °C at Max. 50 MPa. It is an ideal tool for powder metallurgy and ceramic research.

SPECIFICATIONS (We reserve the right to modify the specifications at any time before order confirmation)

Vacuum Chamber	The vacuum chamber is made of stainless steel with a water cooling jacket. Inner chamber size: 500 mm Dia. x 700 mm Height Hinged type of front door with a glass window. Vacuum level: 10 -5 torr via turbopump or diffusion pump
Heating Furnace	The heating furnace is built inside the vacuum oven with the thermal insulation layer made of fibrous alumina. The dimension of the heating chamber is dependent on the pressing die's size. The heating element is dependent on Max. working temperature and optional as the below 500ºC- 1200 ºC heated by NiCrAl coil via K type T/C ( the lowest cost ) 1200ºC - 1700ºC heated by MoSi2 rods via B type T/C ( the higher cost ) 1200ºC - 2000ºC heated by Induction coil via B or C type T/C with heating rate 10ºC/S Please let us know your working temperature range when you ask a quotation
Pressure loading	Electric mechanic pressing machine is built inside the vacuum chamber up to 10 metric tone Max. 10 T load will apply to the pressing die and produce 50 MPa pressure for 2" dia. ID die Digital pressure control for constant pressure within +/- 1 kg An electric hydraulic pressure machine is available upon request.
Pressing Die	The standard die is made of high purity graphite via HIP Graphite die is used under vacuum and inert gas atmosphere only Max. die size is 180 mm OD x 180 mm Height Max. the pressure of graphite die is 50 MPa ( for example 2"ID die at max. 10 T load For use under air or oxygen atmosphere, you shall use Alumina die, which is available upon request.
Temp. Controller	Precision digital temperature controller with automatic PID tuning. Temperature profile that contains a maximum of 30 programmable segments to control heating, dwelling, and cooling Temperature accuracy: ± 1ºC
Control Panel	Temperature and pressure are control by PC via the included software PC is installed on the furnace for easy operation
Optional Water Cooling and Vacuum pump	Requires at least 55 liters per minute water flow. Please click on Pic. 1 below to order at an extra cost *Vacuum level: up to 10-5 Torr* by our turbopump station (EQ-PAC-LD) turbo pumping system pump) or 7.5 mTorr by a mechanical pump. the pump is available upon request (Pic. 2, 3) Vacuum pumped is not included. Please click on the pictures below to view our vacuum pumps at extra cost. The turbopump may be replaced by Gas purification system (O2 & H2O< 1 ppm) (Pic. 4) Pic. 1 Pic. 2 Pic. 3 Pic. 4
Dimensions	800 x 800 x 1700 mm (L x W x H)
Net Weight	350 kg
Warranty	Lifetime support One year limited standard warranty (extend the warranty to 5 years at an extra cost) Graphite rods are not covered by a warranty
Compliance	CE certified NRTL certification (UL 1450) is available upon request at an extra cost
Operation Video

Hot Pellet Press

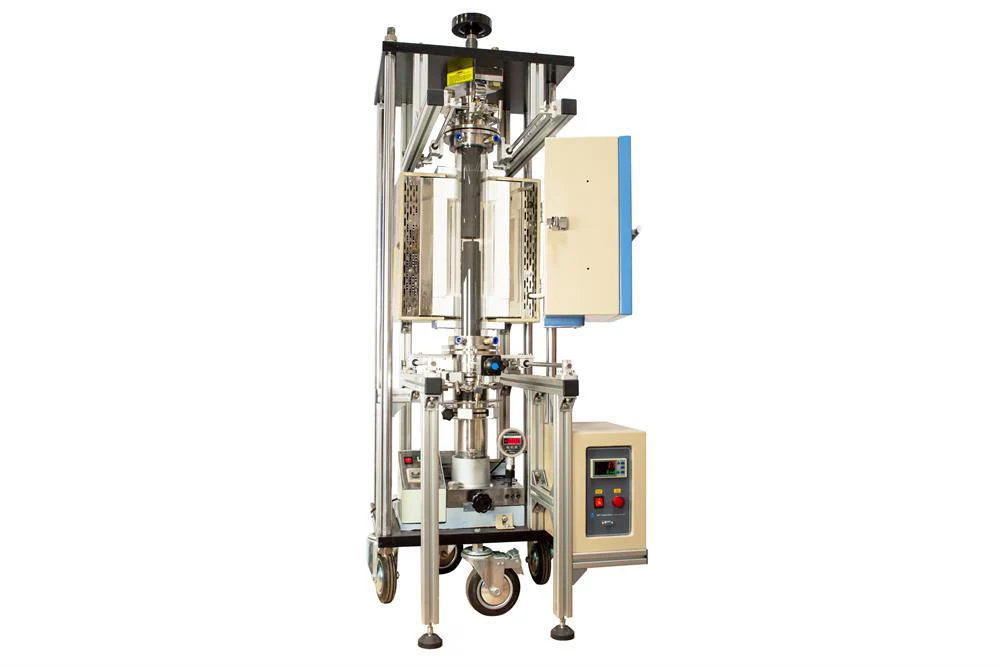

1000ºC Max. Vacuum Pressing Furnace with 4" Quartz Tube and 2T Force- OTF-1200X-VHP4

5T Electric Hot Pellet Press up to 1000 ºC Using Inside Glovebox- YLJHP7

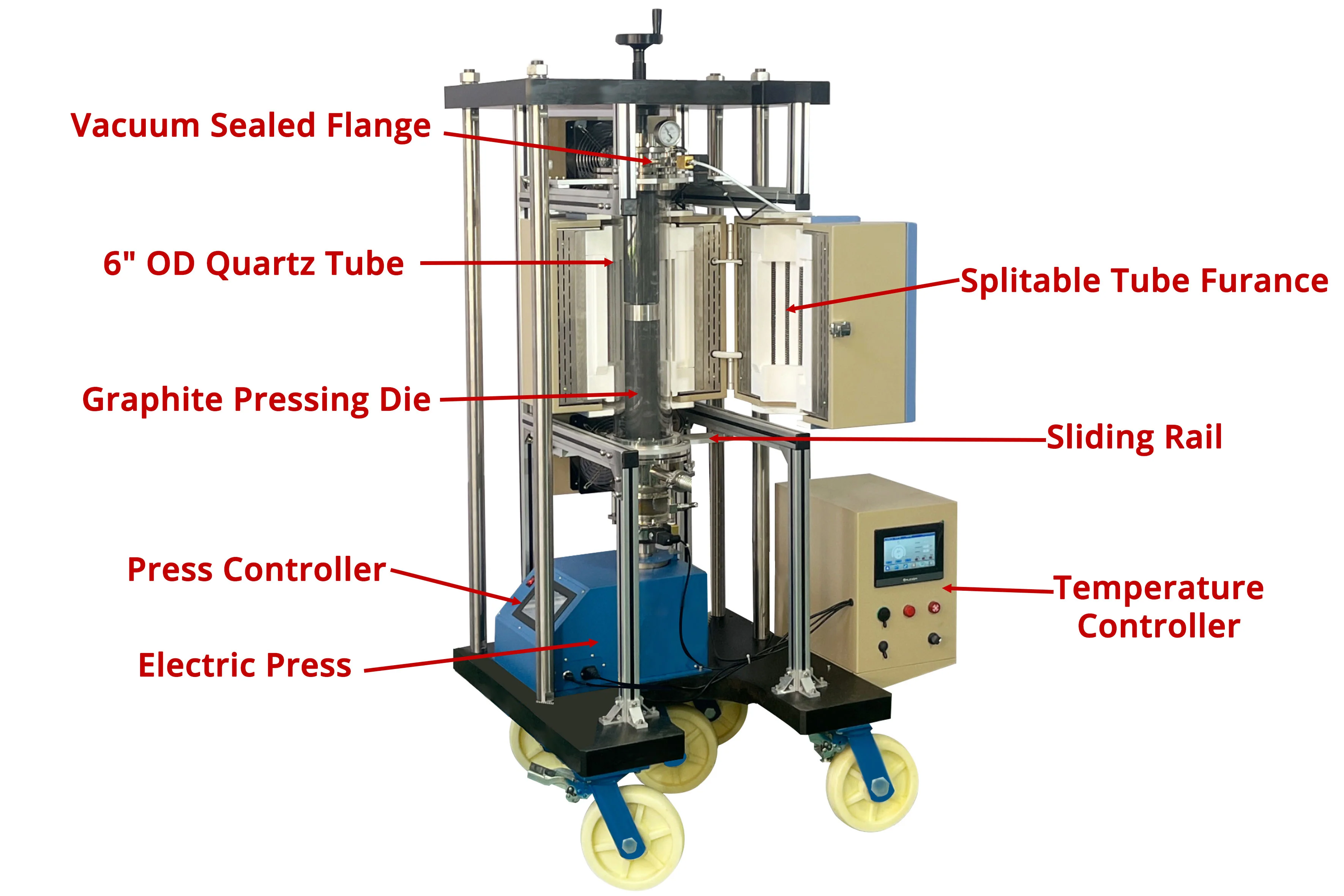

1100°C Max Vacuum Hot Press Furnace with 6" Tube up to 20 T - OTF1200XVHP6
